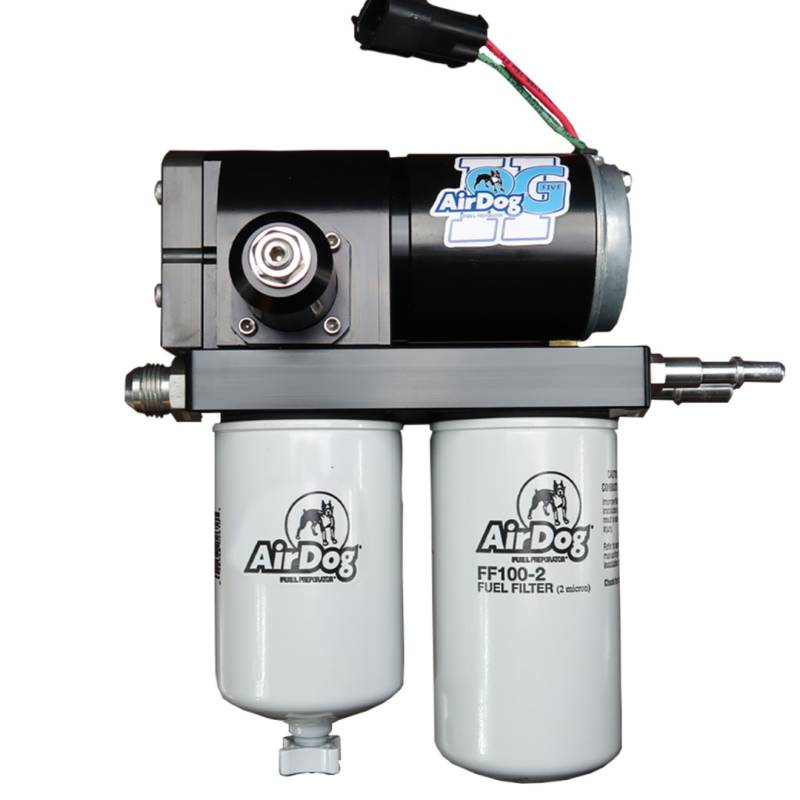

This is the AirDog II-5G DF-165-5G fuel system for the 1998.5-2004 Dodge Ram VP-44 and early CP3 5.9L. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system.
A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2 Inch bulkhead fitting. This will bypass the factory in-tank lift pump.
The pressure side connects directly into the side of the injection pump, bypassing the factory fuel filter housing. The AirDog Air/Vapor return is sent back to the tank through the factory 3/8 Inch suction line once the module is modified.

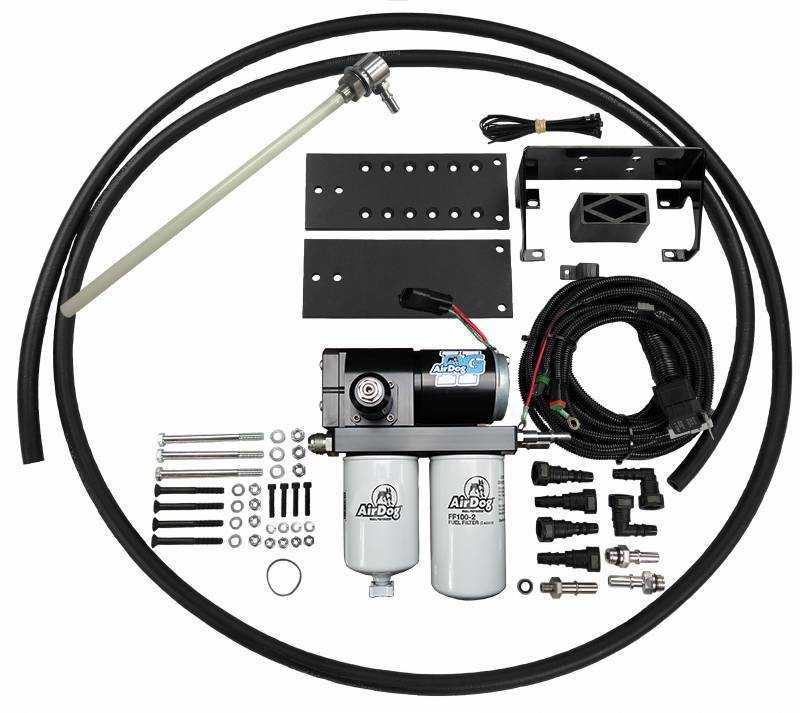

This is a 165GPH (Gallon Per Hour) lift pump system for moderately modified trucks. Check out our installation manual for a list of parts that are included with this kit.
Details:
- Gallons per hour: 165GPH
- Manufacturer: Cummins
- Make: Dodge
- Liter: 5.9L
- Valve: 24V
- Engine Years: 1998.5-2004
- Fuel Type: Diesel
