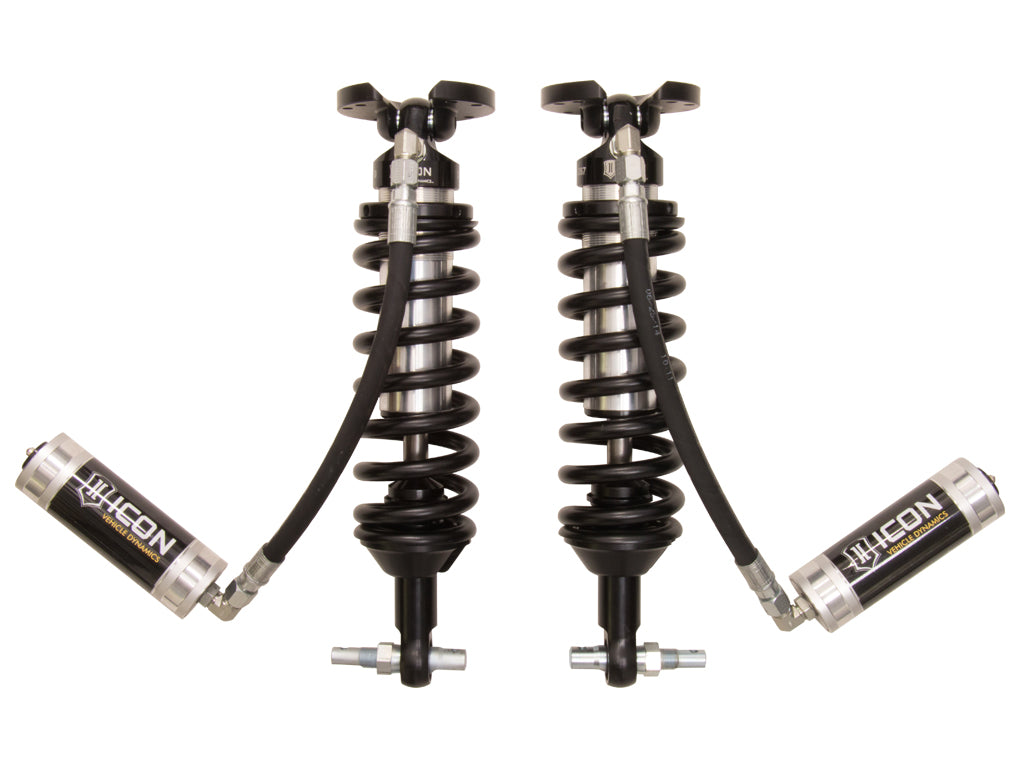

07-18 GM 1500 1-2.5 Inch 2.5 VS RR Coilover Kit Icon Vehicle Dynamics.
Details
- Material: Steel
- Active Or Passive Suspension: Passive
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- Adjustable Ride Height: Yes
- Assembled: Yes
- Body Diameter: 2.5 Inch
- Boot Included: No
- Coil Over Springs Included: Yes
- Compressed Length: 15.27
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Cylinder Material: Steel
- Damping Type: Gas
- Dust Shield: No
- Dust Shield Included: No
- Extended Length: 19.94
- Front Spring Rate: 650 Inch
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: Yes
- Internal Construction Type: Single Tube
- Lower Mount Type: Bar Pin
- Maximum Ride Height Raising Distance: 2.5
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset
- Remote Reservoir: Yes
- Reservoir Style: Remote
- Self Leveling: No
- Service Parts: 252001 - 2.5 Fixed Spanner Wrench, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 257306 - 7/8 Shaft 9.65 Oal, 5.40 Travel, 611019 - Coilover Hardware Kit Pair, 254100G - 1 Gallon Icon Performance Shock Oil, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252003 - Seal Install Tool 2.5/3.0
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center Of Eylet
- Spring Color: Black
- Spring Material: Steel
- Spring Rate Type: Linear
- Travel Length: 4.67
- Upper Mount Type: Mount Plate
- Valving Type: Digressive
- Add On Part: 252012 - -4 To -10 Hose Shield Kit, 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25)
