Upgrade your 2009-2013 Ford F-150 with a premium suspension system from BDS that delivers the perfect balance of performance, durability, and value.
Designed specifically for 2009-2013 F-150 models, this lift kit gives you the flexibility to build your truck exactly how you want it. Front strut spacers retain your factory struts while achieving the desired lift height. Out back, you can pair the system with BDS NX2 for daily-driven comfort and control, or upgrade to FOX 2.0 Performance Series IFP rear shocks for enhanced off-road performance and improved heat dissipation when the terrain gets rough.
Dial in your stance with your choice of 3-inch or 4-inch rear blocks, allowing you to fine-tune the rake from a leveled look to a slightly taller rear profile, ideal for towing, hauling, or personal preference.
Engineered to clear up to 37-inch tires, this kit transforms your F-150 into a more capable and aggressive machine without sacrificing ride quality. Whether you're commuting during the week or hitting the trails on the weekend, this system delivers confident handling, reliable performance, and long-term durability.
Proudly Made in the USA, BDS offers this lift kit at a value-driven price point, proving you don't have to compromise quality or performance to build your truck the right way.
Features and Benefits:
- Heavy-duty differential skid slate improves off-road protection.
- High-strength, 1/4 inch steel construction crossmembers correct lower control arm geometry.
- High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
- Lift system does not change the front track width of the vehicle.
Recommended Tires and Wheels:
- (Trimming may be required)
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
Rear Shock Option:
NX2 Nitro Series:
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish

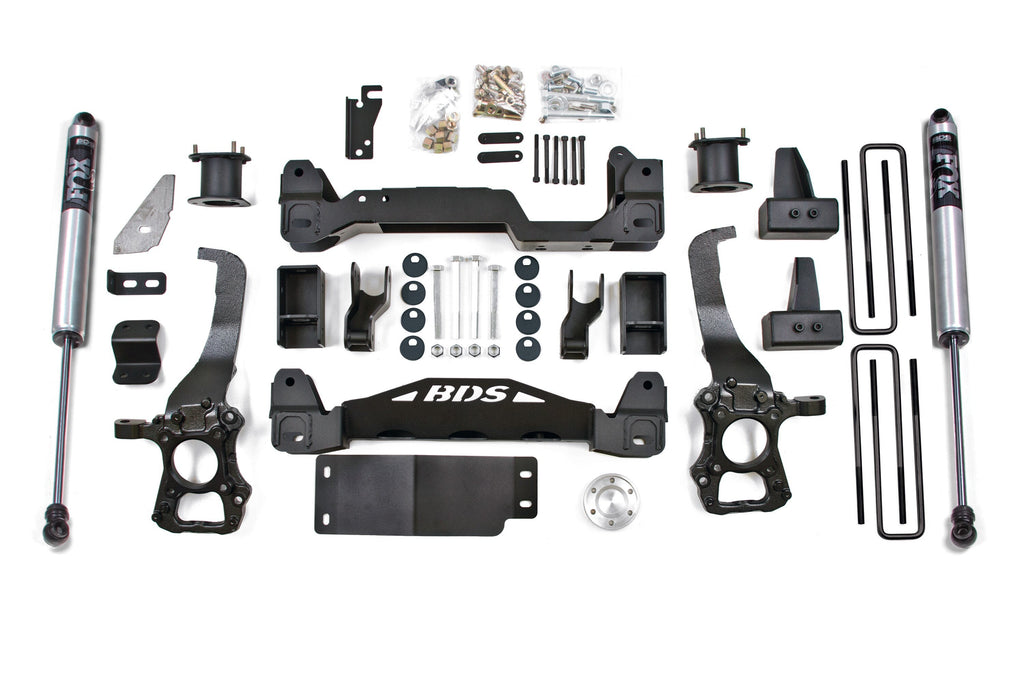

FOX 2.0 Performance Series:
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish

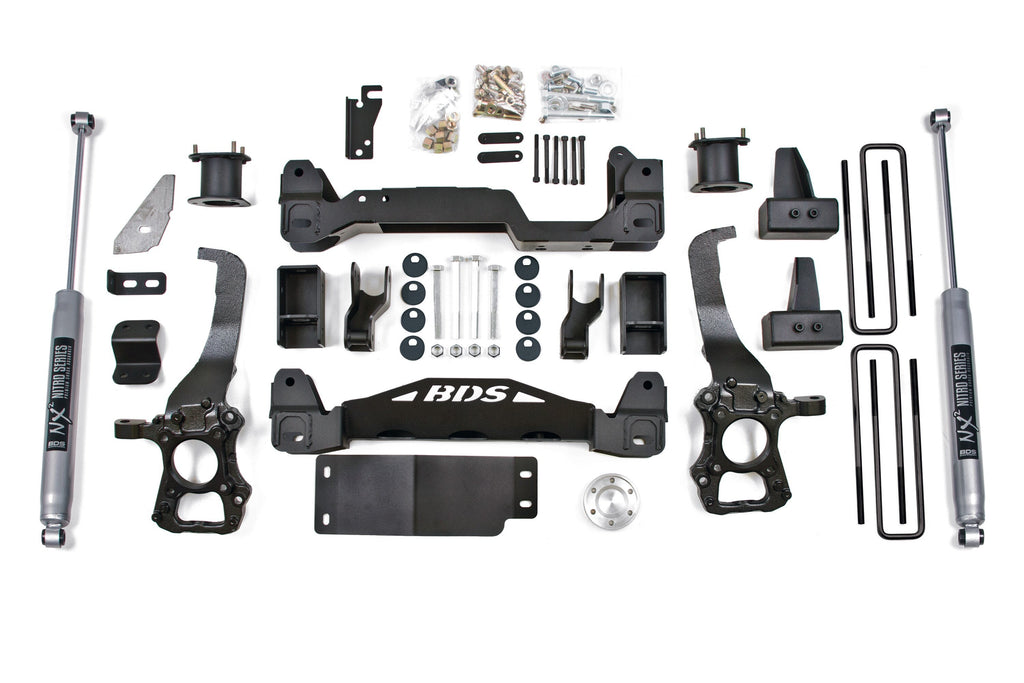

Kit Components:
- BDS013529
- BDS023622
- BDS023623
- BDS023625
- BDS023626
- BDS023627
- FOX98224760 (x2)
Details:
- Fits: 2009-2013 Ford F-150
- Location: Front/Rear
- Material: Steel
- Lift Height: 6.0 Inch
- Rear Lift Height: 4.0 Inch
- Color: Black
- Country Of Origin: USA
- Drive: 4WD
- Fuel Type: Gas
- Lift Type: IFS
- Shock Style: Fox 2.0 Performance Shocks
- Shocks Included: Yes
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
