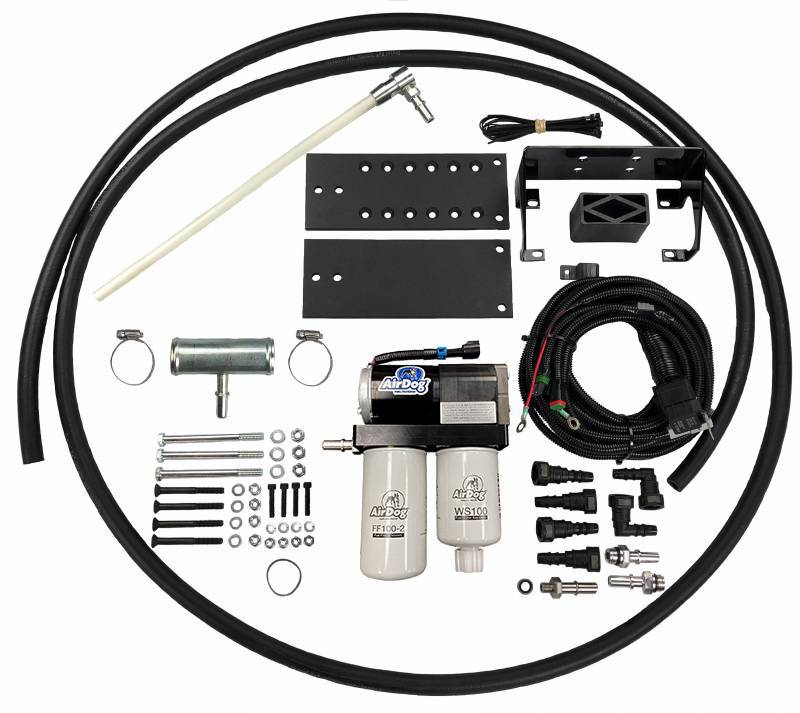

This is the AirDog I FP-150-4G fuel system for the 2004.5-2018 Dodge Ram with the Common Rail Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system.
A 1/2 Inch draw straw is used to pull fuel from the tank. The pressure side connects directly to the CP3 injection pump, bypassing the factory fuel filter housing.
The AirDog Air/Vapor return is sent back to the tank through a filler neck tee. This is a 150GPH (Gallon Per Hour) lift pump system.
Check out our installation manual for a list of parts that are included with this kit.
Details:
- Gallons per hour: 150GPH
- Manufacturer: Cummins
- Make: Dodge
- Liter: 6.7L
- Valve: 24V
- Engine Years: 2004.5-2018
- Fuel Type: Diesel
