Axiom Supply Lifetime Warranty Wheel Bearing Assembly Ford Ranger 2019 - 2023

Fitment

This premium front wheel hub and bearing assembly is designed for 2019–2023 Ford Ranger 4WD models.

Fits:

2019 Ford Ranger 4WD

2020 Ford Ranger 4WD

2021 Ford Ranger 4WD

2022 Ford Ranger 4WD

2023 Ford Ranger 4WD

Position: Front Driver or Passenger Side

Drivetrain: 4WD Only

Important Fitment Note

This assembly is specifically designed for the 4WD Ford Ranger application using Ford OE KB3Z-1104-B.

It does not replace the different front hub used on 2WD / RWD Rangers.

Ford 2WD / RWD models use a different OE hub configuration, including KB3Z-1109-A.

Features

Precision Bearing Assembly – Precision-matched internal bearing components are engineered for smooth operation, proper preload, reduced friction, and dependable service life.

Premium High-Temperature Grease – Pre-lubricated for smooth operation and long-term protection under demanding driving conditions.

Heavy-Duty Hub Construction – Designed to minimize hub-face movement and maintain consistent wheel-end geometry under load.

Premium Hardware – Grade 10.9 cold-formed, zinc-plated wheel studs provide high tensile strength and corrosion resistance.

Direct Bolt-In Design – Complete hub and bearing assembly installs directly into the factory steering knuckle with no modification required.

Left or Right Front Position – One assembly fits either the driver or passenger side front position.

Wheel Configuration – 6×5.5 / 6×139.7 bolt pattern with M12×1.50 wheel studs.

Description

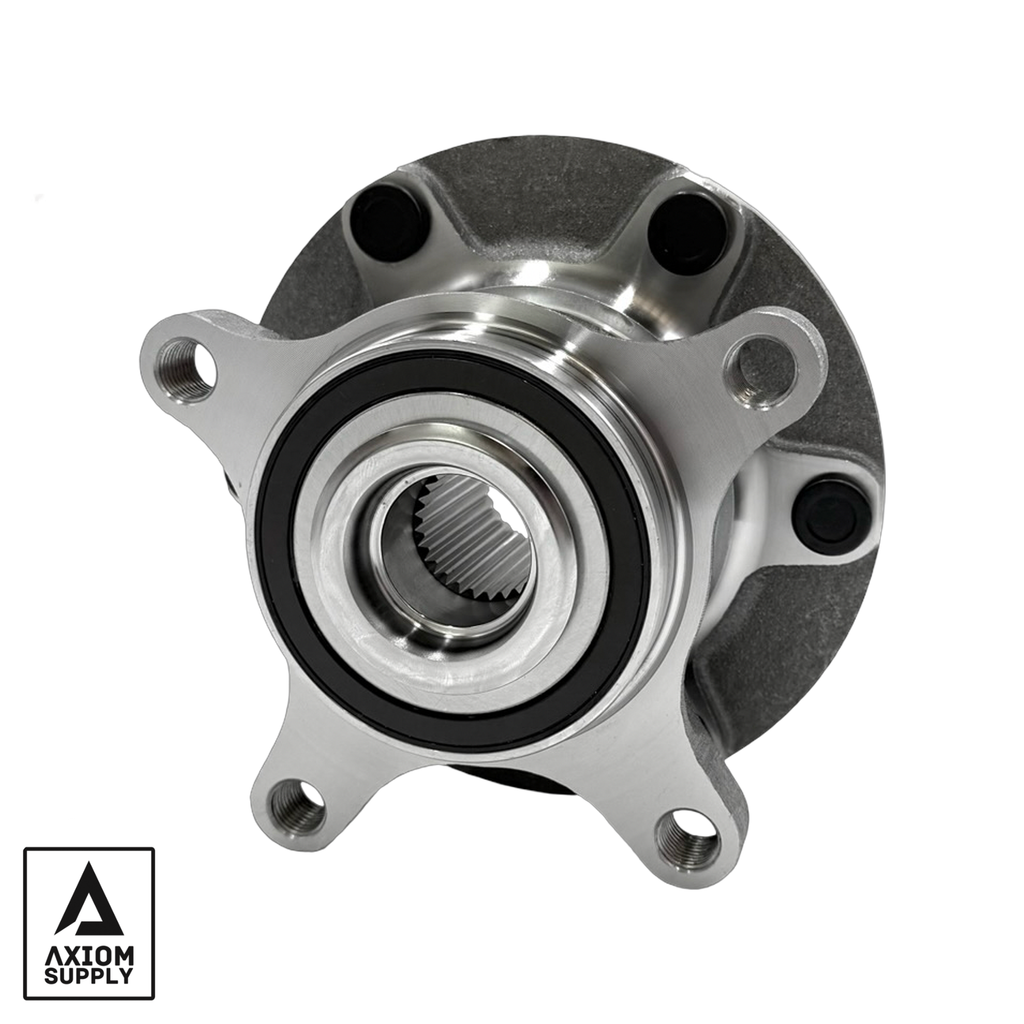

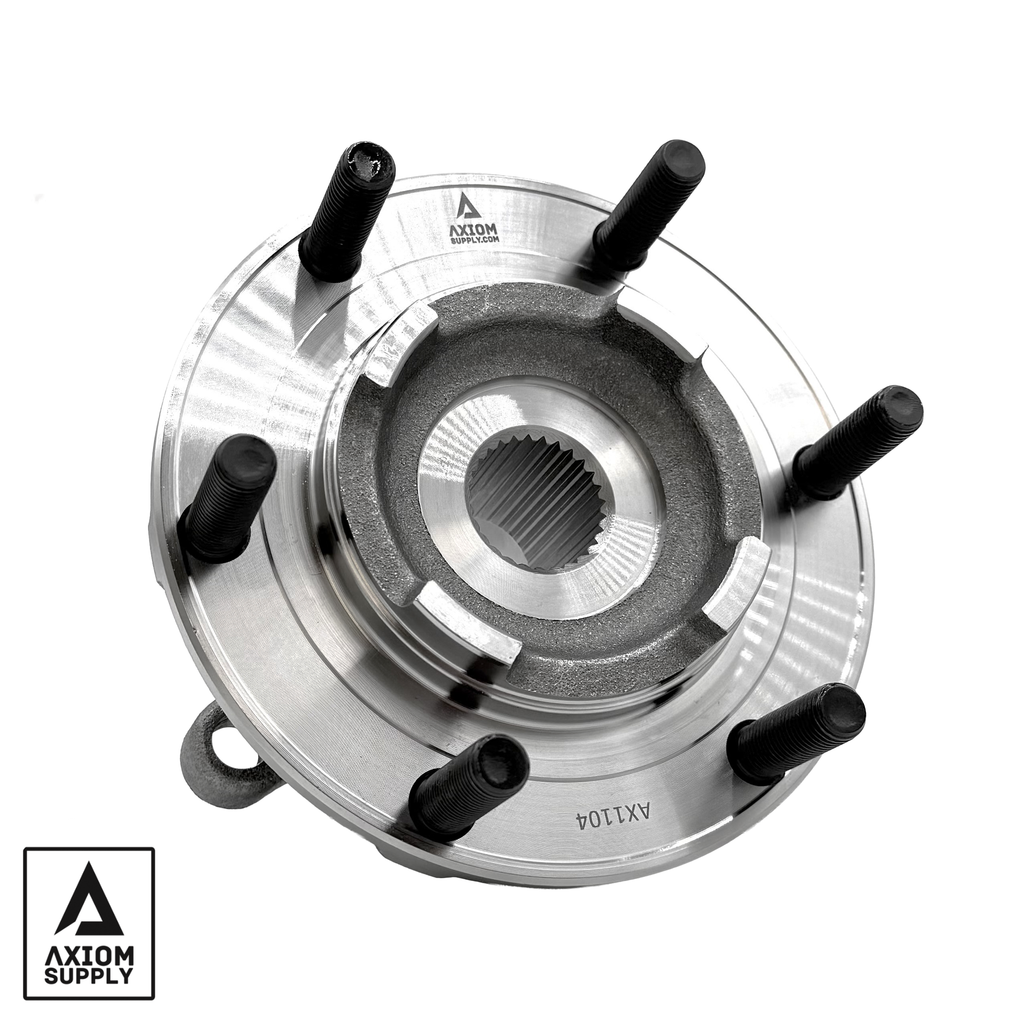

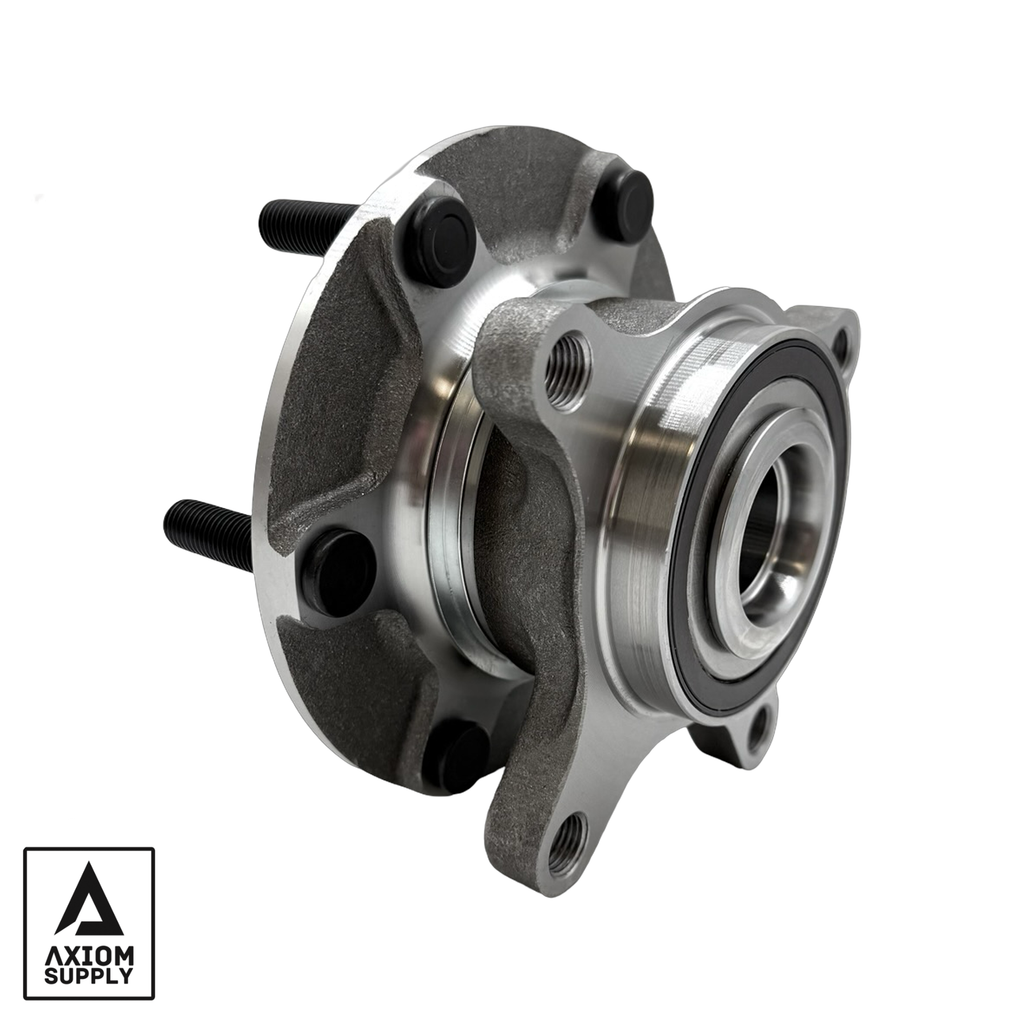

The Axiom Supply AX1104-B Lifetime Warranty Wheel Hub and Bearing Assembly is engineered as a premium replacement for the front wheel hub on 2019–2023 Ford Ranger 4WD trucks.

Designed around the factory Ford KB3Z-1104-B hub configuration, AX1104-B provides a complete bolt-in replacement for either the driver or passenger side front wheel position.

Axiom Supply wheel hub assemblies are engineered to maintain consistent bearing preload and minimize excessive hub-face movement under load. This helps provide tighter steering response, consistent braking performance, reduced wheel-end movement, and dependable long-term durability.

The sealed and pre-lubricated bearing assembly is designed for demanding daily driving, towing, off-road use, oversized tires, and modified suspension applications.

Premium zinc-plated wheel studs provide added strength and corrosion resistance, while the complete hub design eliminates the need to press individual bearing components during installation.

Whether your Ranger is a daily driver, work truck, tow vehicle, or off-road build, AX1104-B is designed to provide the strength and reliability expected from an Axiom Supply wheel hub assembly.

And like our other premium wheel-bearing assemblies, it is backed by the Axiom Supply True No-Nonsense Lifetime Replacement Warranty.

Includes

(1) Axiom Supply AX1104-B Front Wheel Hub & Bearing Assembly

Quantity Required Per Vehicle: (2)

One for the driver side

One for the passenger side

Torque Specifications

Front Axle / Wheel Hub Nut

221 lb-ft (300 Nm)

Ford specifies installing a new wheel hub nut after removal.

Wheel Hub-to-Steering Knuckle Bolts

129 lb-ft (175 Nm)

Torque the four hub mounting bolts evenly in a cross pattern.

Front Brake Caliper Anchor Plate Bolts

111 lb-ft (150 Nm)

Wheel Lug Nuts

100 lb-ft (135 Nm)

Thread Size: M12×1.50

Always follow the latest Ford service information and proper installation procedures for your specific vehicle.

Interchange

Ford OE

KB3Z-1104-B

KB3Z-1104-A

Motorcraft

HUB-467

MOOG

515207

Mevotech TTX

TXF40338

Mevotech Supreme

MB40338

NAPA

PBR40338

Timken

HA590865

Axiom Supply

AX1104-B

Interchange numbers are provided for identification and fitment reference purposes.

Fitment Verification

Before ordering, verify that your Ranger is:

2019–2023

Ford Ranger

4WD

and uses Ford OE hub:

KB3Z-1104-B / KB3Z-1104-A

This product is not intended for the 2WD / RWD Ranger front hub application.

The Axiom No-Nonsense Lifetime Warranty

Our applicable wheel-bearing, and suspension components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.

Push it to the limit—we don't care.

If the part lets you down, we will make it up to you!
