Fitment

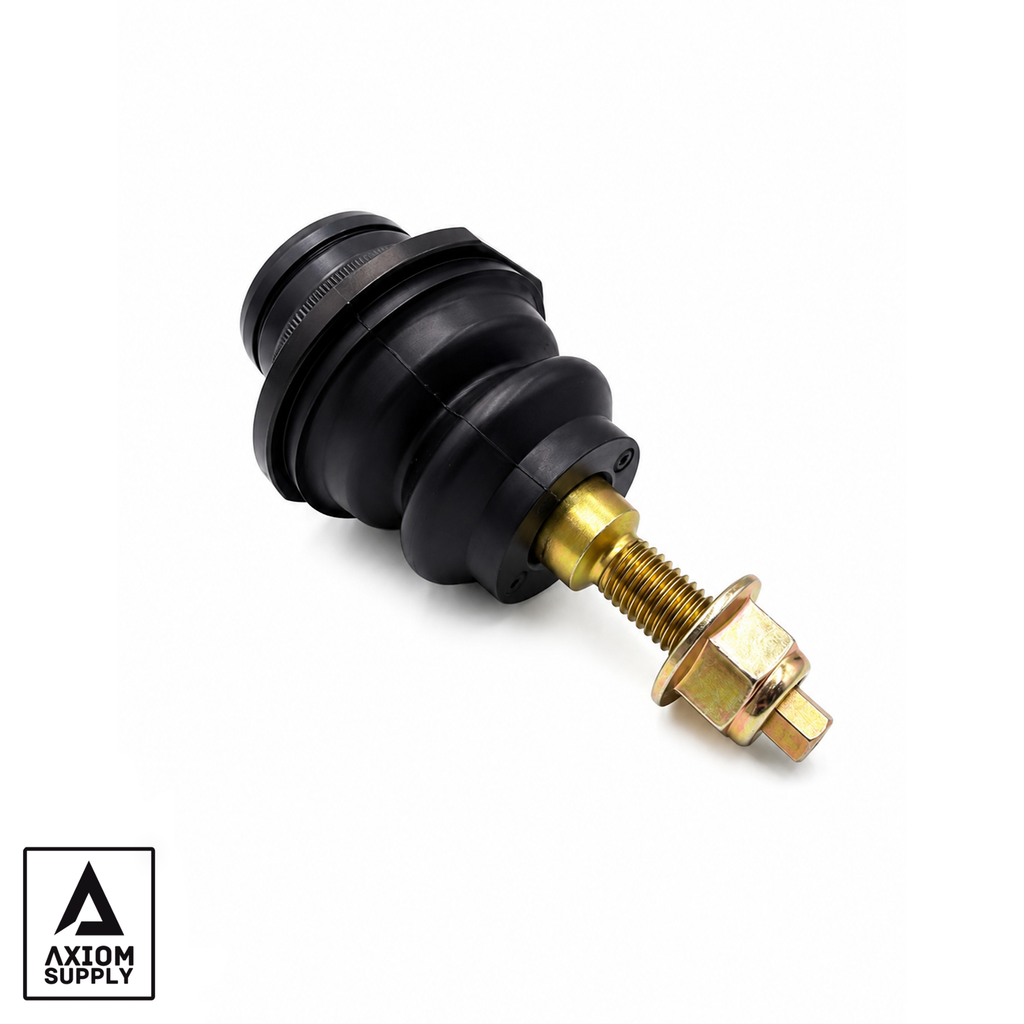

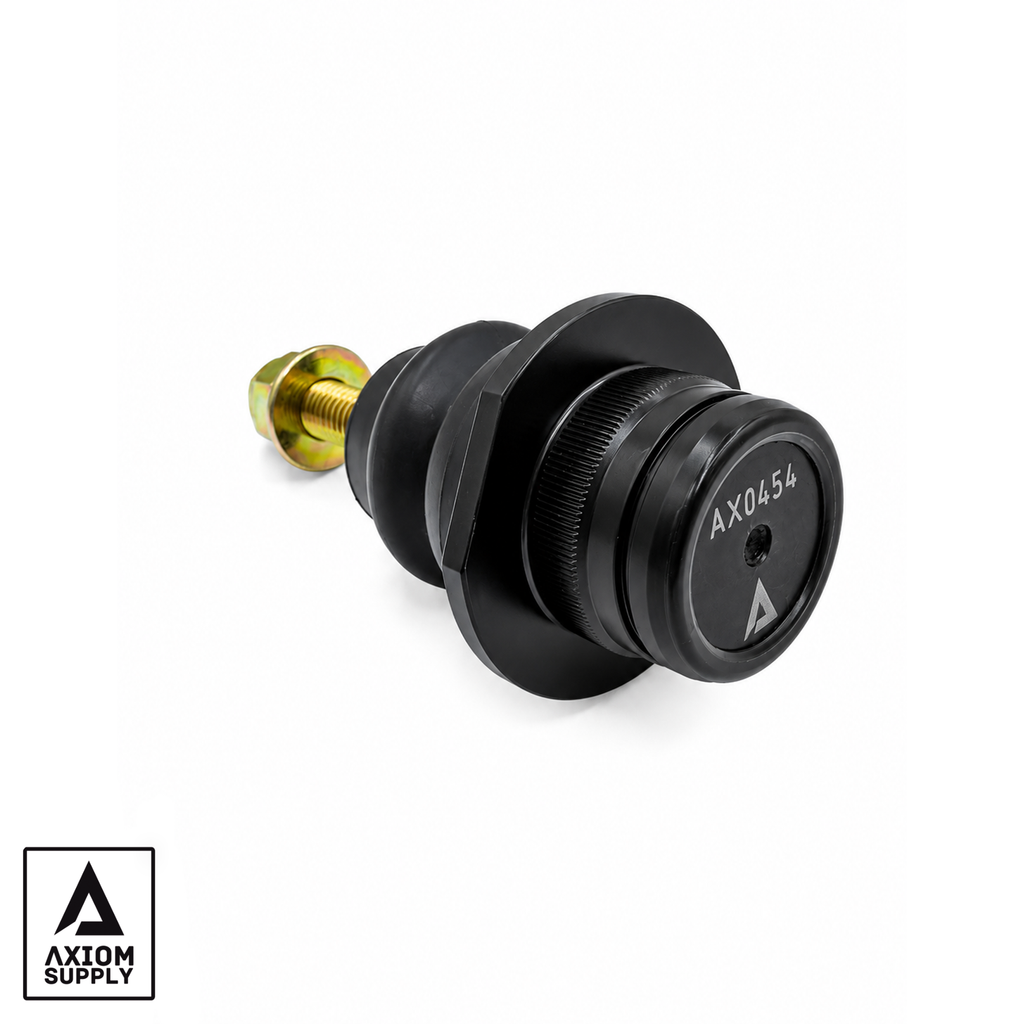

The Axiom Supply Heavy-Duty Press-In Upper Ball Joint is engineered as a direct OE-style replacement for 2021–2025 Ford Bronco and 2024–2025 Ford Ranger applications utilizing a press-in upper ball joint.
Applications Include:
Ford Bronco
Base: 2021–2023, 2025
Big Bend: 2021–2025
Black Diamond: 2021–2025
Outer Banks: 2021–2025
Badlands: 2021–2025
Wildtrak: 2021–2024
Everglades: 2022–2024
Heritage Edition: 2023–2025
Heritage Limited Edition: 2022–2024
First Edition: 2021
Stroppe Edition: 2025
Raptor: 2022–2025
Ford Ranger
XL: 2024–2025
XLT: 2024–2025
Lariat: 2024–2025
Raptor: 2024–2025
Fitment Notes
Direct replacement for Ford OE MB3Z-3050-A.
Press-in design for factory upper control arms.
Compatible with factory suspension and many aftermarket upper control arms designed to accept the OE-style press-in ball joint.
Always verify compatibility with aftermarket control arm manufacturers prior to installation.
Features
Grade 12.9 Extreme-Duty Ball Stud – Engineered with an ultra-high-strength Grade 12.9 ball stud to provide exceptional tensile strength, fatigue resistance, and durability under severe off-road conditions.
Forged Steel Housing – Precision-forged steel construction delivers superior strength for lifted Broncos, oversized tires, high-speed desert use, rock crawling, and overlanding.
OE Press-In Design – Manufactured to factory dimensions for precise fitment and proper press retention within the upper control arm.
High-Articulation Design – Increased operating angle accommodates greater suspension travel without sacrificing durability.
Precision Internal Bearing Assembly – Premium internal bearing surfaces provide smooth steering feel while minimizing deflection and wear.
Self-Compensating Load System – Maintains proper preload throughout the service life of the ball joint to reduce looseness and preserve steering precision.
Greaseable Construction – Fully serviceable design allows fresh grease to be added for maximum longevity in harsh environments.
Corrosion-Resistant Finish – Protective coating resists rust, road salt, mud, water, and off-road abuse.

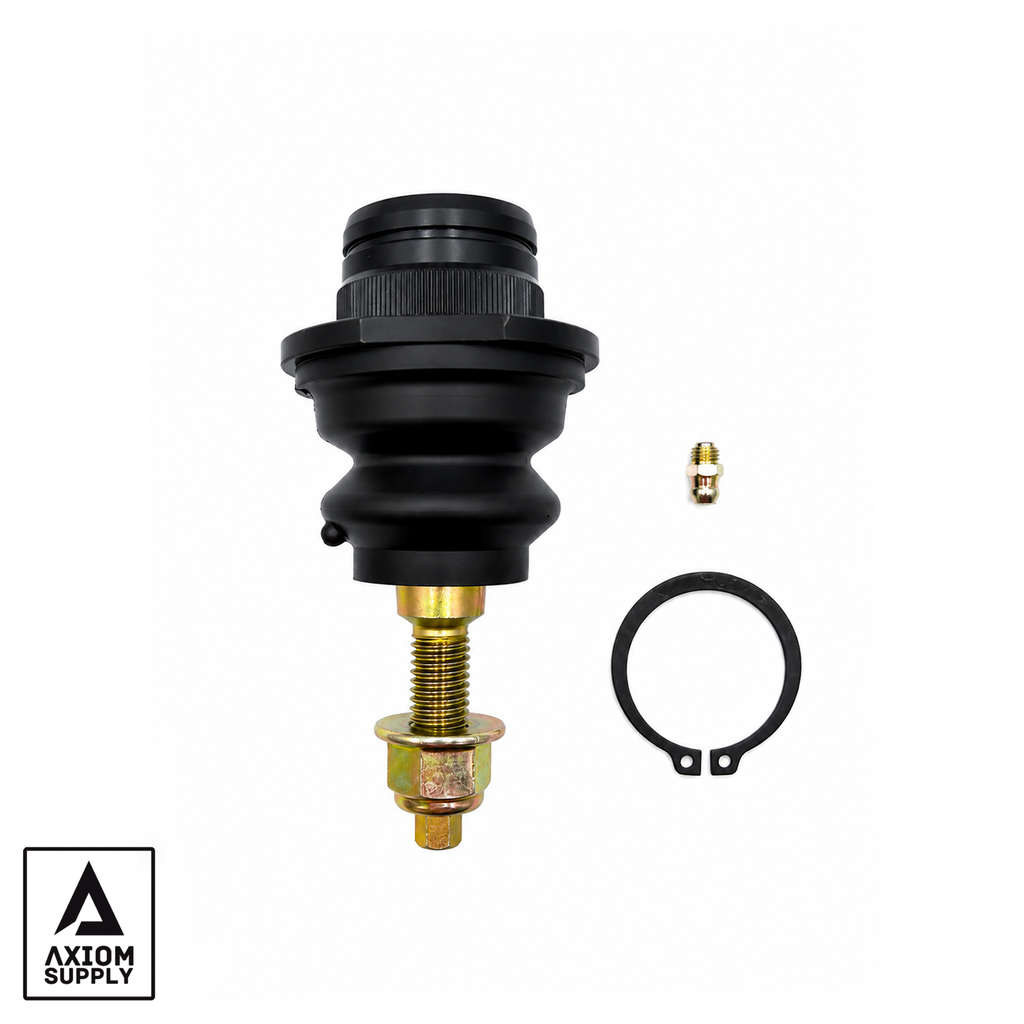

Premium Installation Hardware – Includes new flanged lock nut, cotter pin, and grease fittings for a complete installation.
Description
The Axiom Supply Heavy-Duty Press-In Upper Ball Joint was developed specifically for the new-generation Ford Bronco and Ranger platform with one goal: build an upper ball joint that outlasts the factory component under real-world abuse.
Built around a Grade 12.9 Extreme-Duty Ball Stud, this ball joint offers substantially greater strength than conventional OE designs. Combined with a forged steel housing and precision-machined internal components, it is engineered to withstand the added loads generated by larger tires, suspension lifts, aggressive off-road driving, towing, and daily use.
A fully greaseable design allows periodic maintenance to extend service life, while the high-articulation geometry maintains smooth suspension movement throughout the full range of travel. Whether you're exploring remote trails, towing heavy loads, or commuting every day, the Axiom Supply Upper Ball Joint delivers long-lasting durability and precise steering performance you can rely on.
Maintenance
Apply 2–3 pumps of grease during installation.
Service with 1–2 pumps of grease every 5,000–7,000 miles.
Do not over-grease. The dust boot is designed to keep contaminants out, not retain excessive lubricant.
Includes
(1) Axiom Supply Heavy-Duty Press-In Upper Ball Joint (Sold Individually)
Torque Specifications
Upper Ball Joint Nut: Torque to the vehicle manufacturer's specification.
Important: Do not use impact tools during installation or while pressing the ball joint into the control arm.
Interchange
Ford: MB3Z-3050-A, MOOG: K500454, Mevotech Supreme: MS40560
The Axiom No-Nonsense Lifetime Warranty
Our suspension and steering components are backed by our True No-Nonsense Lifetime Replacement Warranty for the original purchaser against manufacturing defects, premature wear, or breakage.
Push it to the limit—we don't care.
If the part lets you down, we'll replace it. No excuses. No fine print.
