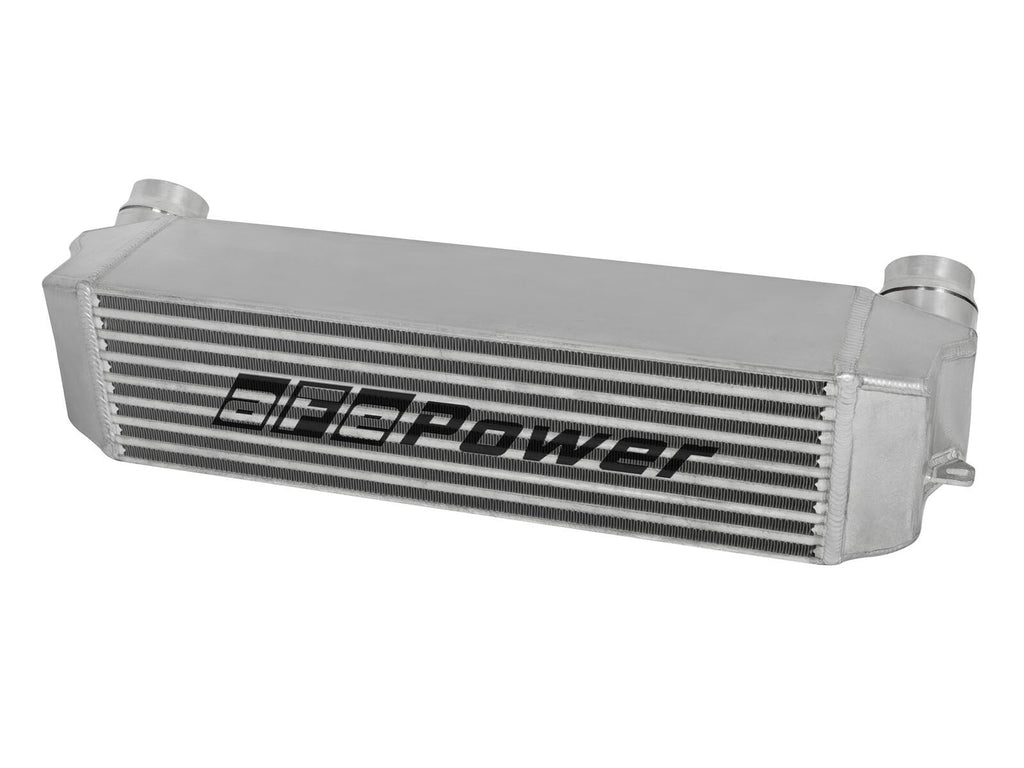

This BladeRunner Intercooler represents the next generation of intercoolers. Designed specifically for the 2012-2016 BMW 328i (F3X) 12-16 L4-2.0L (t) with the N20 engine, this BladeRunner intercooler utilizes a 5 Inch bar and plate core design. This design outflows the factory fin core design, while the 3/16 Inch Tig-Welded end tanks offer superior strength and durability.
In testing, this intercooler showed flow gains up to 17 percent and lowered the intake air temperatures. End Tanks: The unique BladeRunner end tanks are constructed out of 3/16 Inch thick aluminum plates and include two 1/8 Inch Npt ports for sensors or water-methanol injection. 5 Inch Bar and Plate Core Design: The use of the bar and plate core design allows for greater airflow and increased heat dissipation over the much smaller tube and fin design used by the factory.
Tig-Welded: 100 percent Tig-Welded inside and out by a certified craftsmen for strength and durability. Tig-Welding provides the strongest welds while reducing stress cracks. Pressure Tested: The BladeRunner Intercooler is test pressure rated at 200psi.
Perfect Fit: Utilizes the factory mounting locations for a hassle-free installation. The intercooler and tubes utilize billet factory style quick connects to assure a leak-free connection.
Features and Benefits:
- Outflows Factory Intercooler By 17 percent
- Lowers Manifold Intake Air Temperature
- 2.5 Inch Billet Aluminum Intake/Outlet
- Incorporates Factory Style Quick Connections For Tubes
- 5 Inch Bar And Core Design 29 percent Larger than Stock
- 100 percent Tig Welded
- 1/8 Inch Npt Ports On Intercooler And Tube
- No Cutting Or Modifications Are Needed
Details:
- Emission Code: 1
- Engine Designation: N20B20A, N26B20A, N20B20U0
- Fuel Type: Gas
- Intake Pipe Material: Aluminum
- Liter: 2.0 Liter
- Series: BladeRunner GT Series
- Warranty: 2 Year
Applications:
- BMW 328i (F30) 12-18 L4-2.0L (t) N20
