Problem: If you are running an aftermarket pump that is mounted external of the fuel tank, you will need to install a draw straw or drill your fuel tank to accommodate a sump. Each of these has some pretty significant drawbacks including the 1/4 tank issues that result in cavitation of the pump when you draw air into the fuel system.

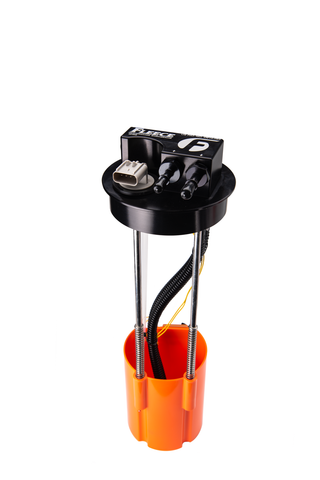

Solution: SureFlo is designed to work with externally mounted aftermarket lift pumps and fits directly into your stock sending unit location. It features factory style quick disconnects to adapt your stock fuel lines at the tank, giving you the cleanest installation available and requiring no cutting or drilling of the tank.

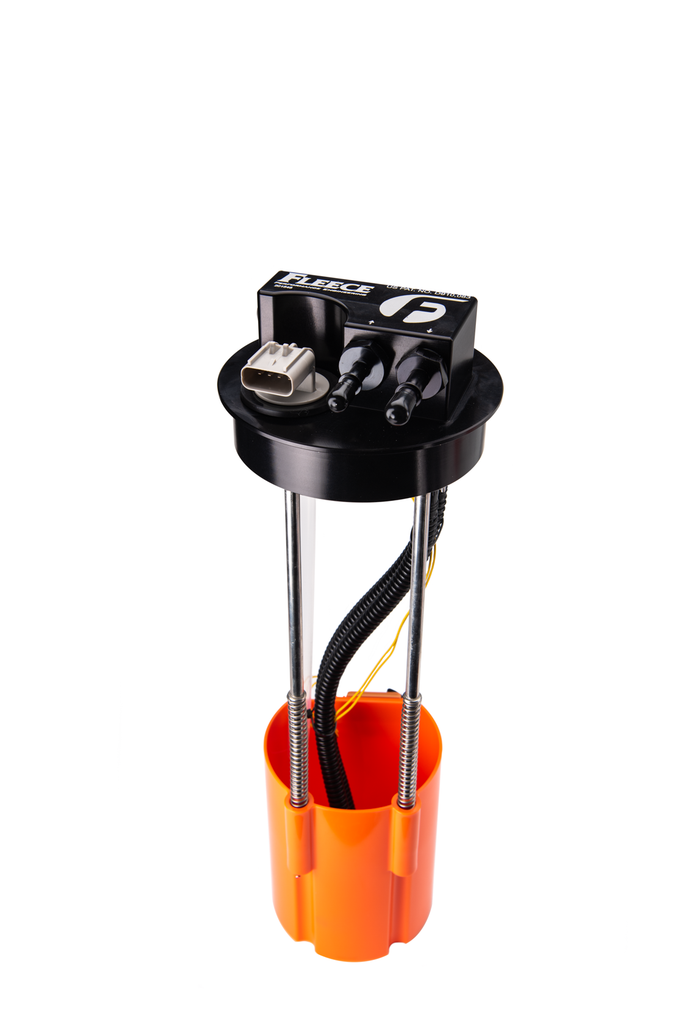

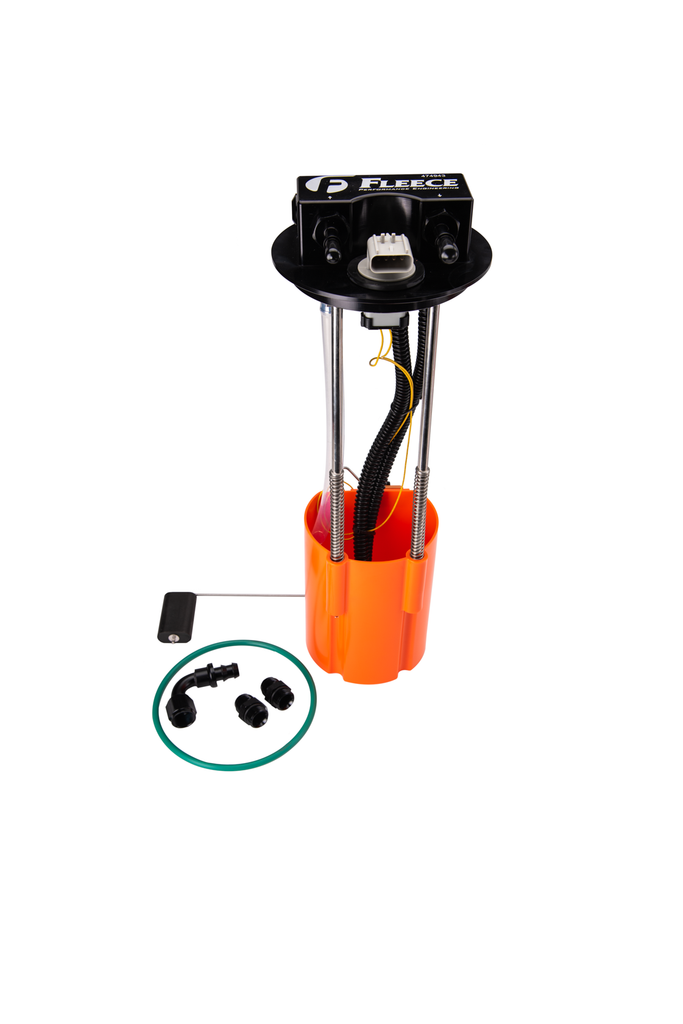

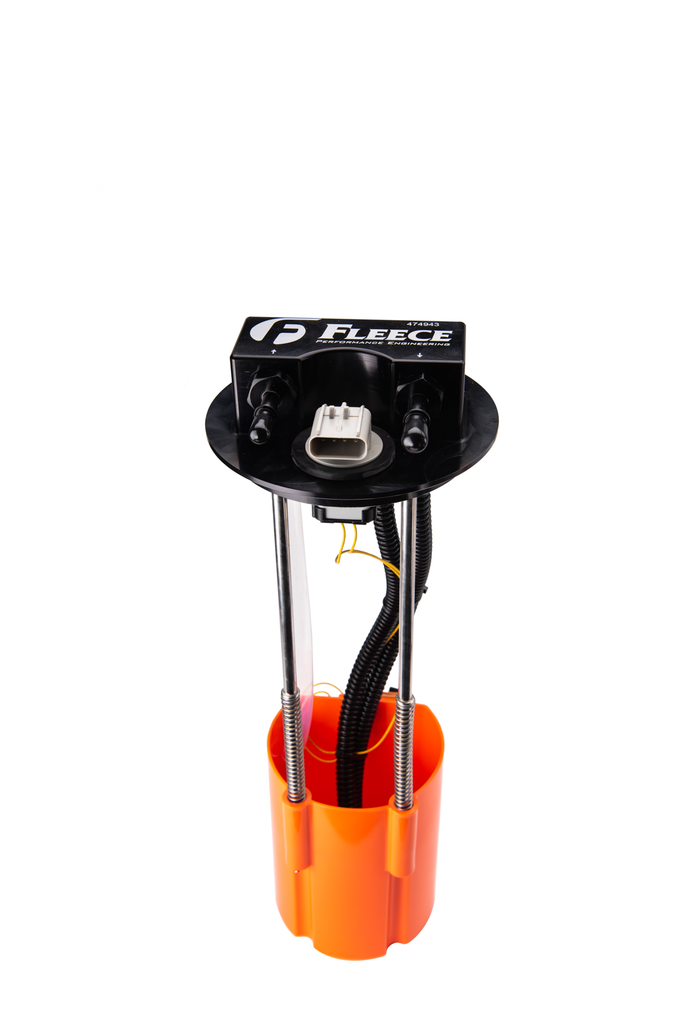

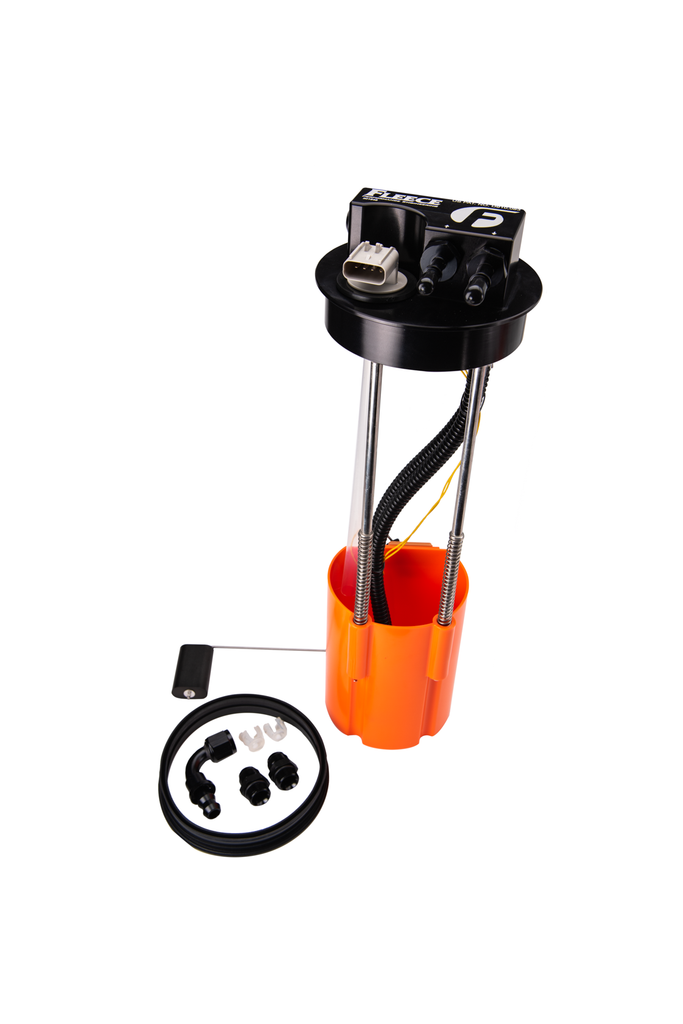

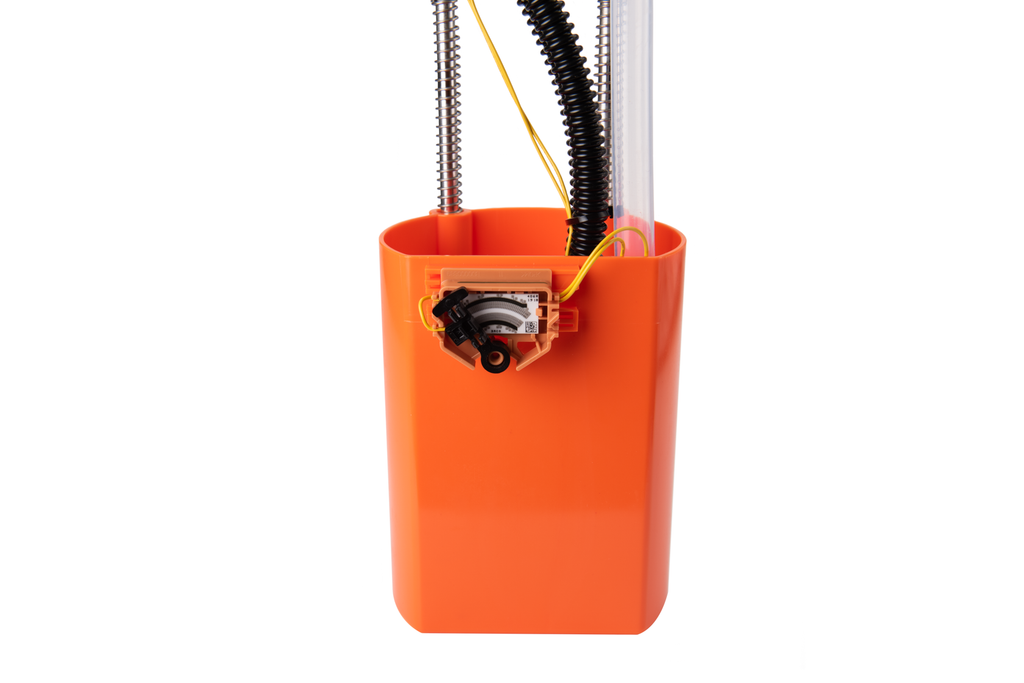

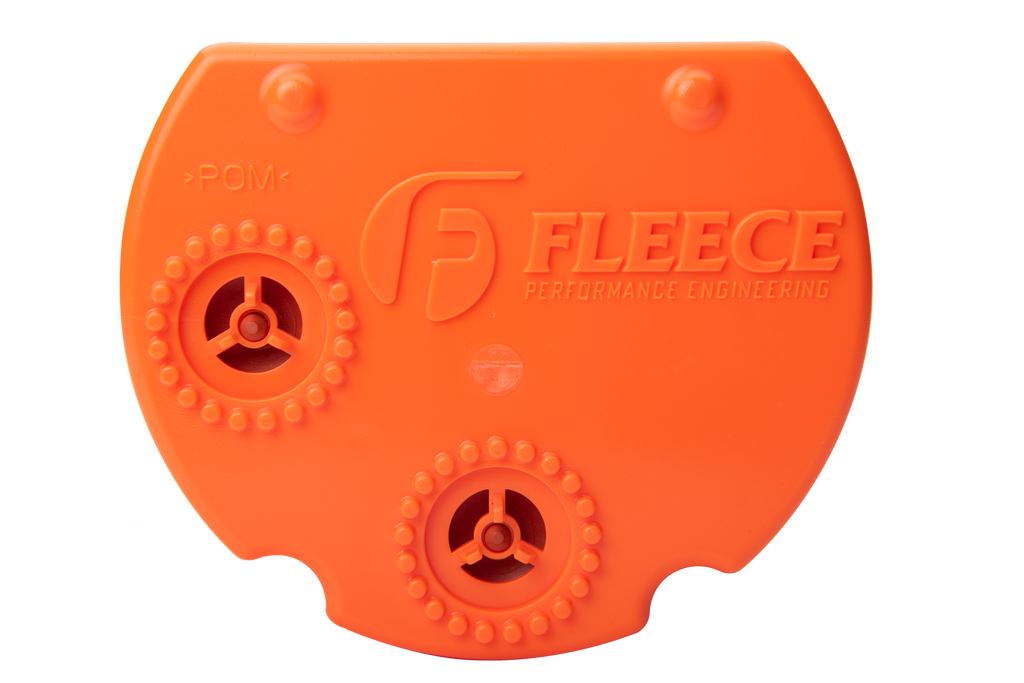

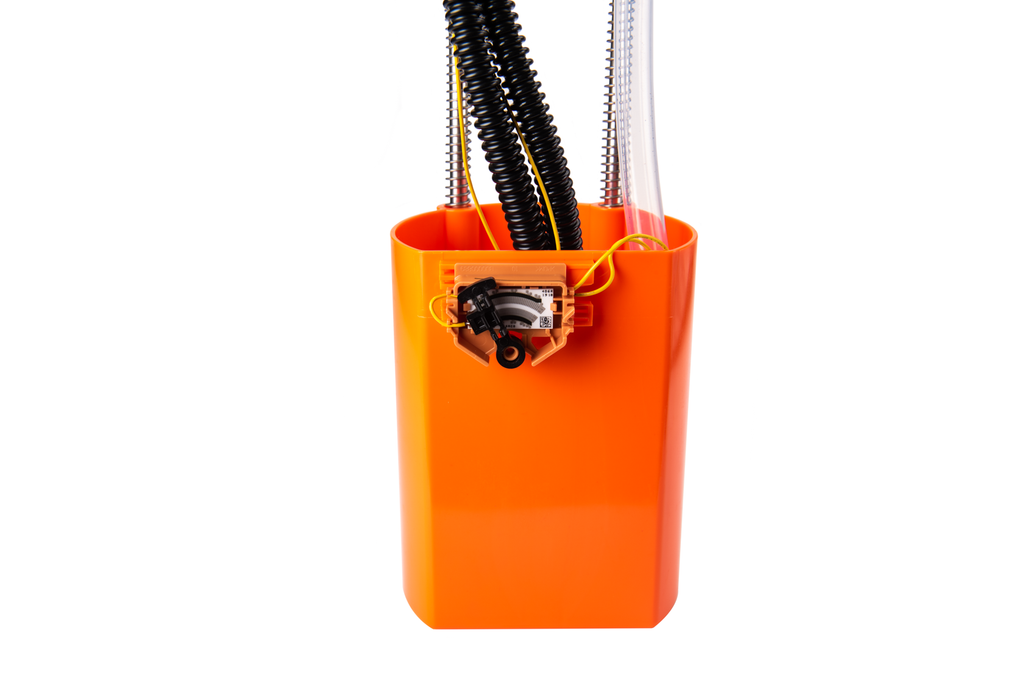

SureFlo works by drawing fuel from, and returning fuel to, the bucket assembly at the base of the unit. This ensures you are always drawing fuel into your pump and not drawing air into the fuel system as well as eliminates the dreaded 1/4 tank problems. The SureFlo bucket also incorporates one way check valves to allow fuel to easily flow in, even at the lowest of fuel levels.
SureFlo sending units are a great alternative for trucks originally equipped without an in tank pump needing to repair a malfunctioning level sender or if you are simply looking to run your own custom fuel lines directly to the tank. SureFlo is not recommended for use with aftermarket lift pumps that exceed a 200 GPH rating.
SureFlo features include:
- OEM style fitment that requires no tank cutting or drilling
- New fuel level electronics and fuel float

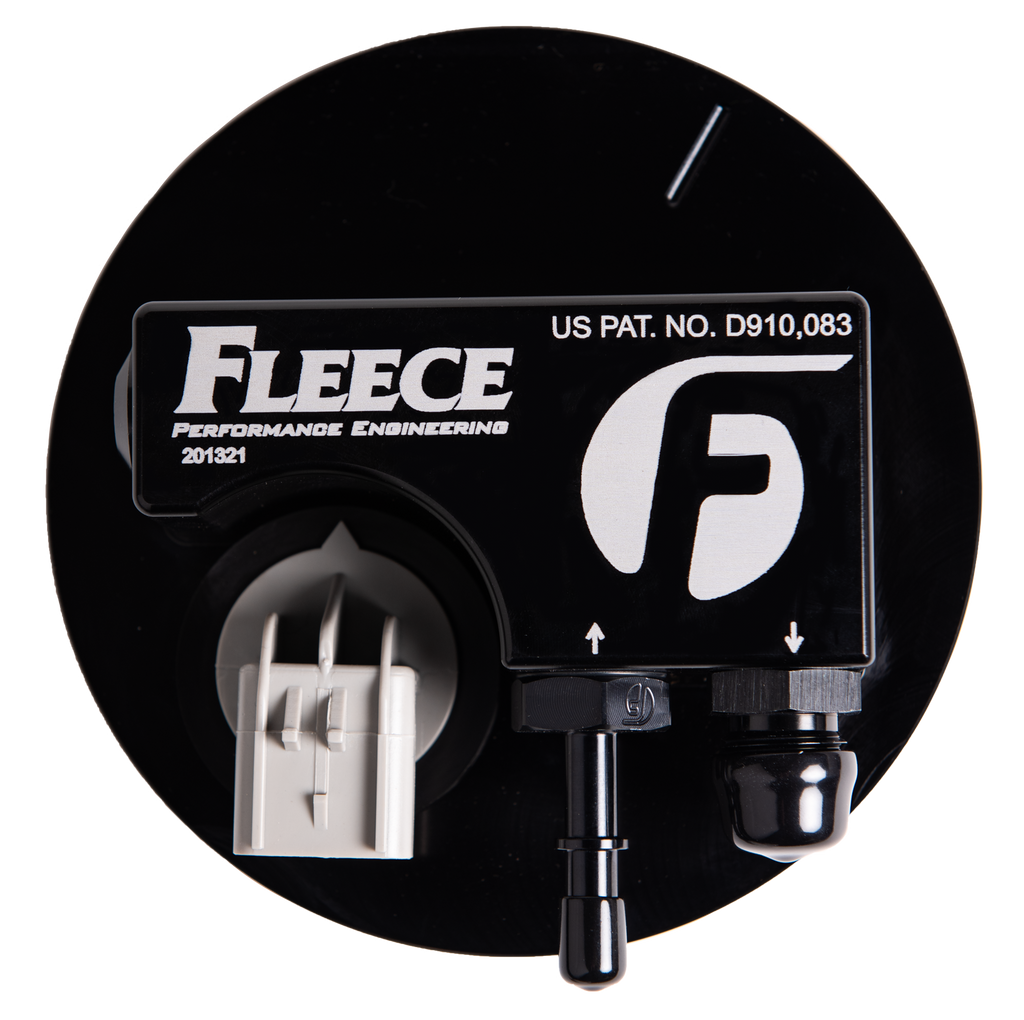

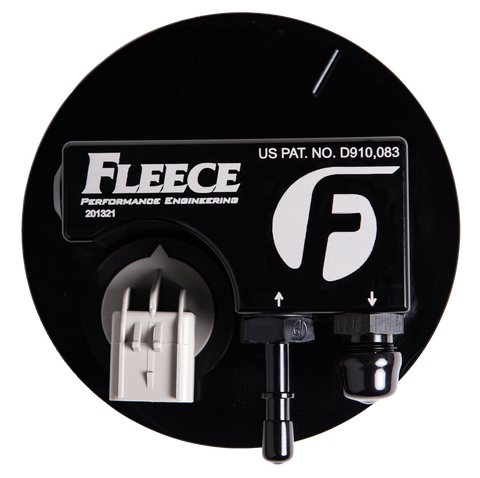

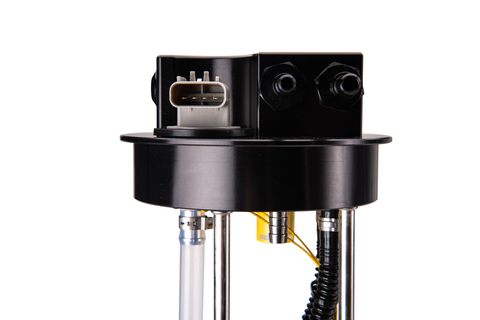

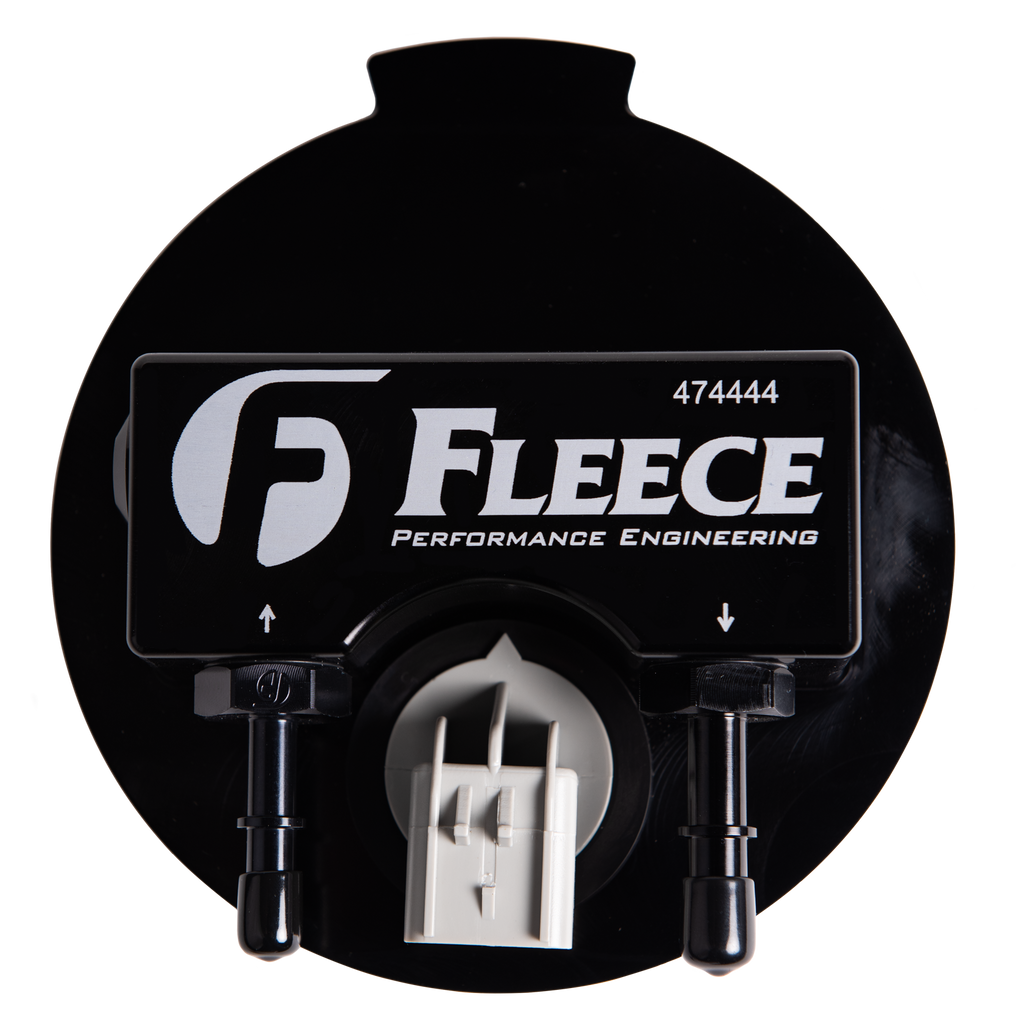

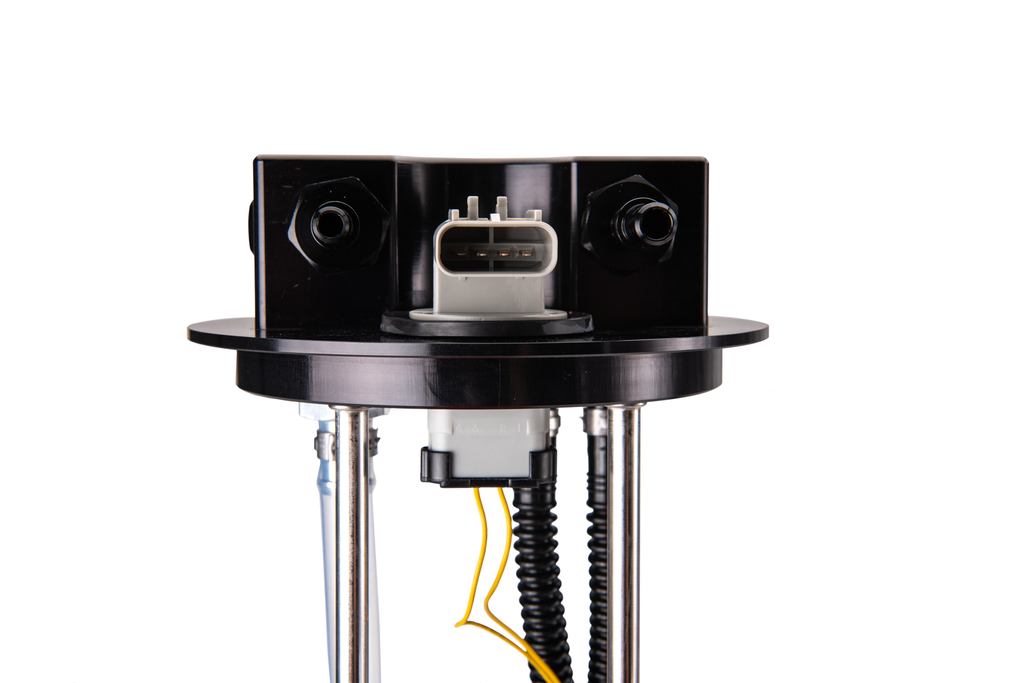

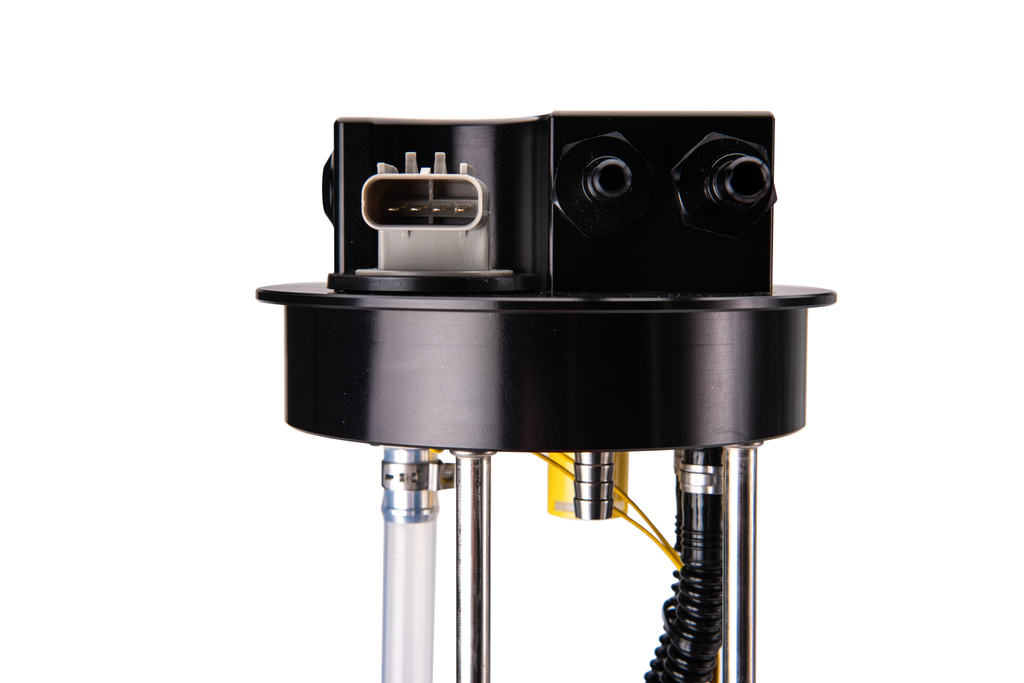

- Heavy duty billet aluminum cap
- Universal -8 AN ports for professional plumbing of a custom fuel setup
- New O-ring or flange seal 8 to 3/4-16 straight male fitting w/ O-ring
