Quantity In Stock: 5+
- Reduces crank failure from loose balancer
- Pin kit eliminates the chance of the harmonic balancer spinning on the crankshaft
- Easy to install

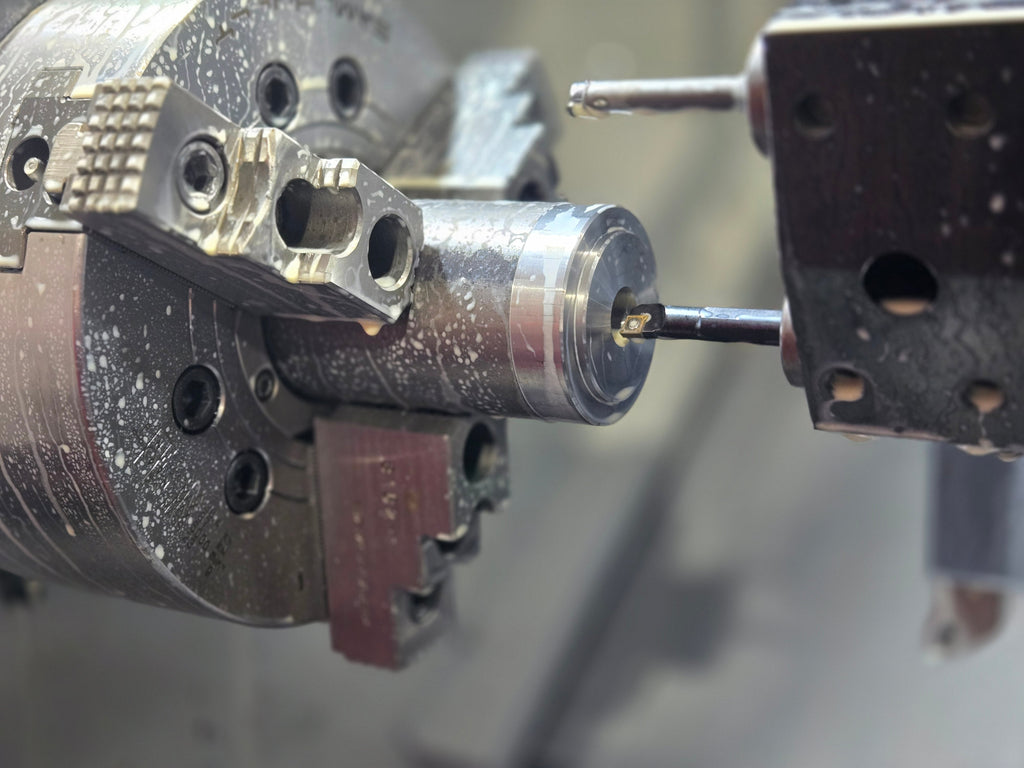

- CNC Machined Drill Template from 1018 Steel

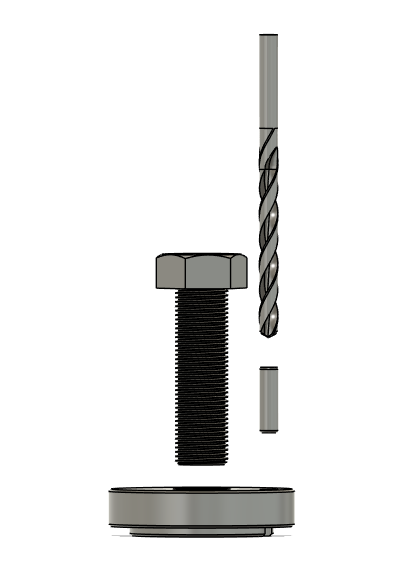

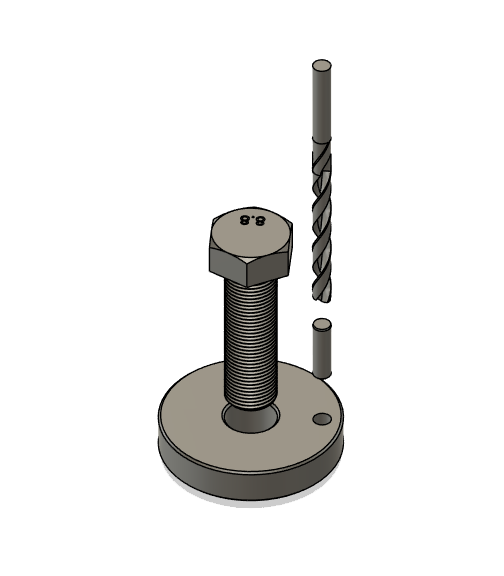

Includes:
- 1x Drill Template
- 1x 1/4" Alloy Steel Dowel Pin by 7/8" Long
- 1x 1/4" Cobalt Drill Bit
- 1x M18x1.5-60mm Bolt
Fits: 2001-2024 Chevy GMC 6.6 Duramax LB7 LLY LBZ LMM LML L5P
Note: Will not work on the 6-bolt style Fluidamprs

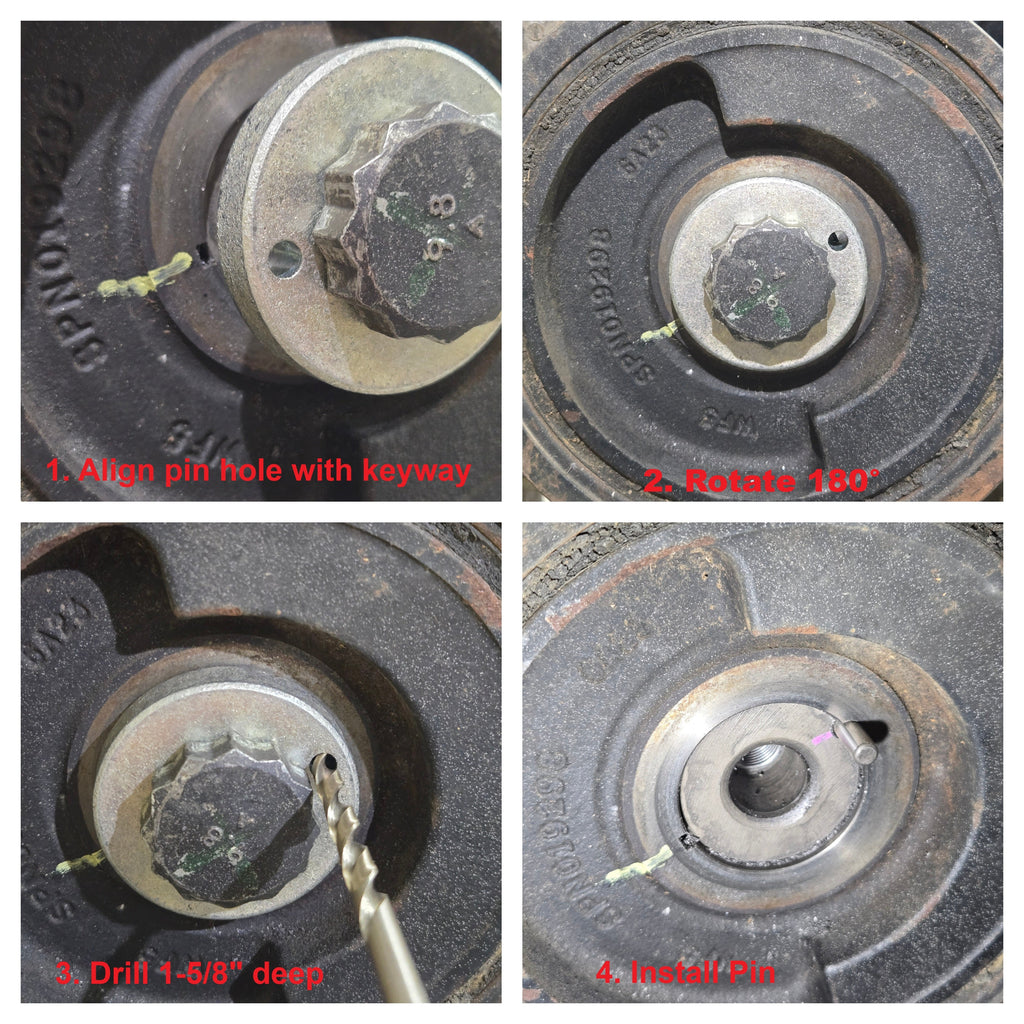

Install notes:
1. Place the drill template on the balancer with the supplied bolt
2. Rotate the drill hole 180° from the factory key
3. Mark drill bit at 1-5/8" drill depth with tape or a paint marker
4. Drill the crank slowly using lubricant until at the drill depth of 1-5/8". Be sure to hold the bit square with the end of the crank.
5. Remove the template & clean the hole.
6. Install dowel pin
7. Install crank bolt and torque to spec.
2001-2010 74 ft-lbs + 105 degrees
2010.5-2020+ 74 ft-lbs + 90 degrees
With our balancer bolt: 255 ft-lbs
