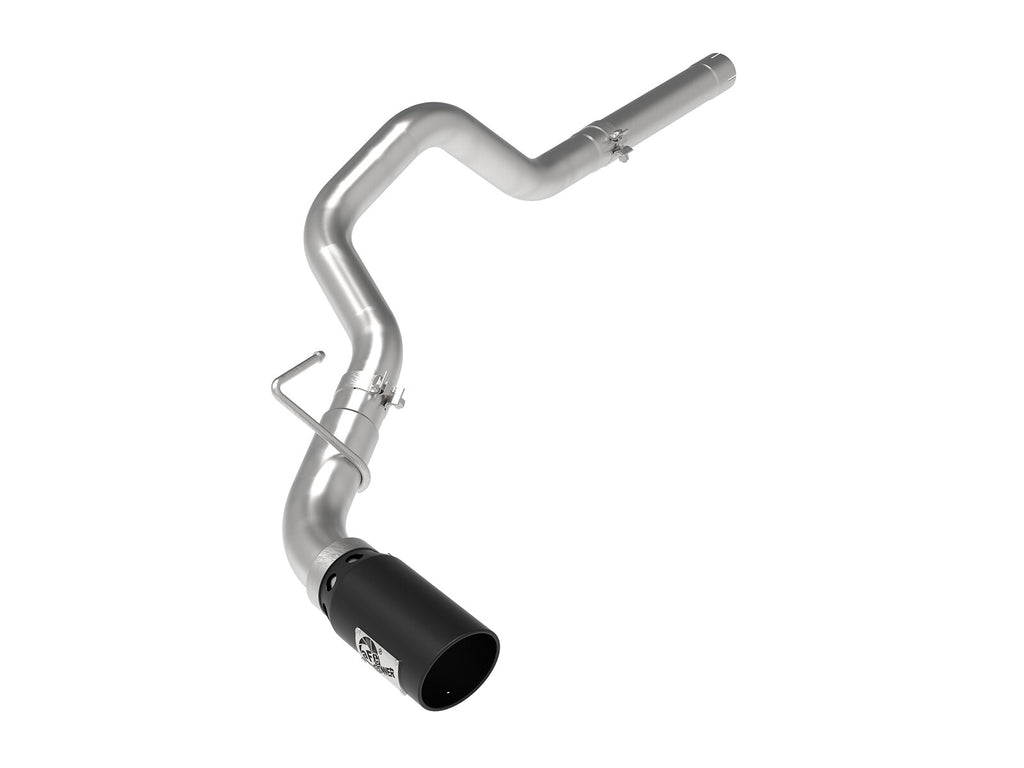

Simple Installation: This Dpf-back exhaust system uses factory mounting locations providing stability and hassle-free installation. OE Fit: Oe-style bayonet hangers are used to maintain a stable pipe location during high vibration and high heat conditions. The bayonet tip holds the hanger bushing in place for an Oe-style fit that does not change with time.

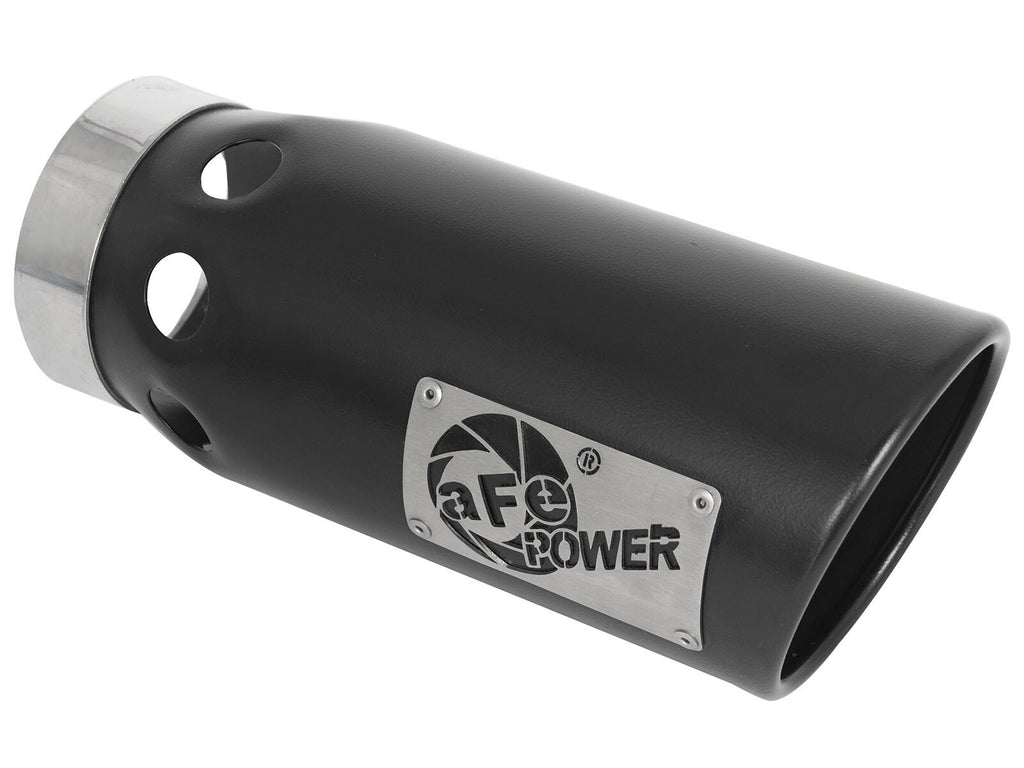

Flow and Performance: This Large Bore-HD Dpf-back exhaust system is constructed of 3 Inch to 3-1/2 Inch mandrel-bent stainless steel tubing for maximum flow. Smooth transition bends allow for low turbulence, increasing horsepower, torque and lowering Egt's. 5 Inch Diameter Black Intercooled Tip: Finishing off the exhaust is a 5 Inch diameter, black, stainless steel slash cut tip with intercooling vents designed to reduce exhaust gas temperatures at the tailpipe.
A unique stainless steel laser-cut aFe Power logo plate is riveted on for an aggressive style. Fitment Note: Crew Cab / 5'7 Inch Bed (140 Inch Wheelbase), Crew Cab / 6'4 Inch Bed (149 Inch Wheelbase), Quad Cab / 6'4 Inch Bed (140 Inch Wheelbase) Note: This system requires cutting behind the Dpf unit. Emissions Disclaimer: This product does not require a Carb Eo#.
aFe Power exhaust systems are engineered and manufactured in our Corona, California facility.
Features and Benefits:
- Constructed from 3 to 3-1/2 Mandrel-Bent Stainless Steel Tubing
- Uses a High Quality Band Clamp and Oe-Style Bayonet Hangers for a Secure Fit
- Utilizes all Factory Mounting Locations to Provide a Quick, Hassle-Free Installation
- Includes a Massive 5 Dia. Black Stainless Steel Intercooled Tip With a Laser-Cut aFe Power Badge
Details:
- Color: Black
- Emission Code: 4
- Exhaust Tip Cut: Slant
- Exhaust Tip Edge: Rolled edge
- Exhaust Tip Included: Yes
- Exhaust Tip Outlet Size: 5 Inch
- Exhaust Tip Quantity: Single
- Exhaust Type: DPF-Back
- Exit Location: Passenger side
- Fuel Type: Diesel
- Includes Muffler: No
- Liter: 3.0 Liter
- Muffler Included: No
- Series: Large Bore-HD
- Sound Level: Moderate
- System Finish: Natural
- System Material: 409 Stainless Steel
- Tip Cut: Slant
- Tip Edge Style: Rolled edge
- Tip Finish: Black Powdercoated
- Tip Included: Yes
- Tip Material: 409 stainless steel
- Tip Outlet Size: 5 Inch
- Tubing Diameter: 3 Inch
- Warranty: 2 Year
Applications:
- Dodge Ram 1500 EcoDiesel 14-19 V6-3.0L (td)
