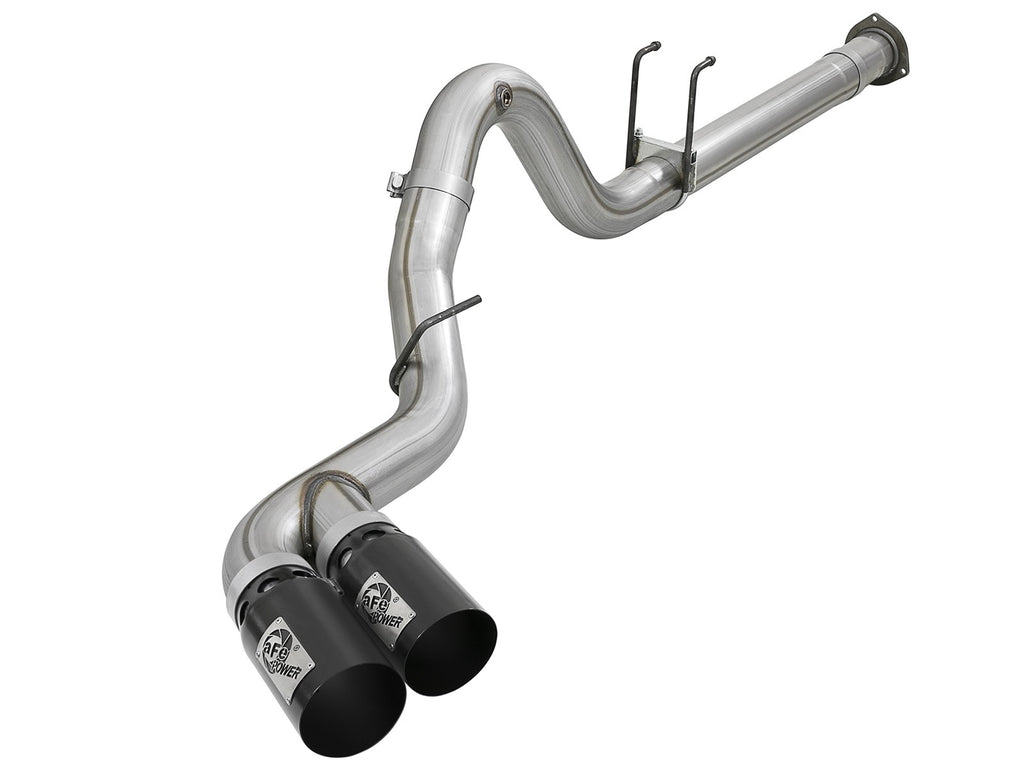

aFe's Rebel Xd Series Dpf-back exhaust system performs as good as it looks. Made with 4 Inch mandrel bent 409 stainless steel tubing to improve exhaust flow for more HP, torque and lower Egt's. The Rebel Xd is Mig welded for durability and includes high quality hardware to provide a quick, hassle-free installation.
Finished with dual 5 Inch black stainless steel tips with intercooling vents make it the perfect combination of performance, value and style.
Stainless Steel Construction: This Rebel Xd Series exhaust system is constructed of 4 Inch mandrel-bent 409 stainless steel tubing for maximum flow and durability. Smooth transition bends allow for low turbulence, increasing horsepower, torque and lowering Egt's.

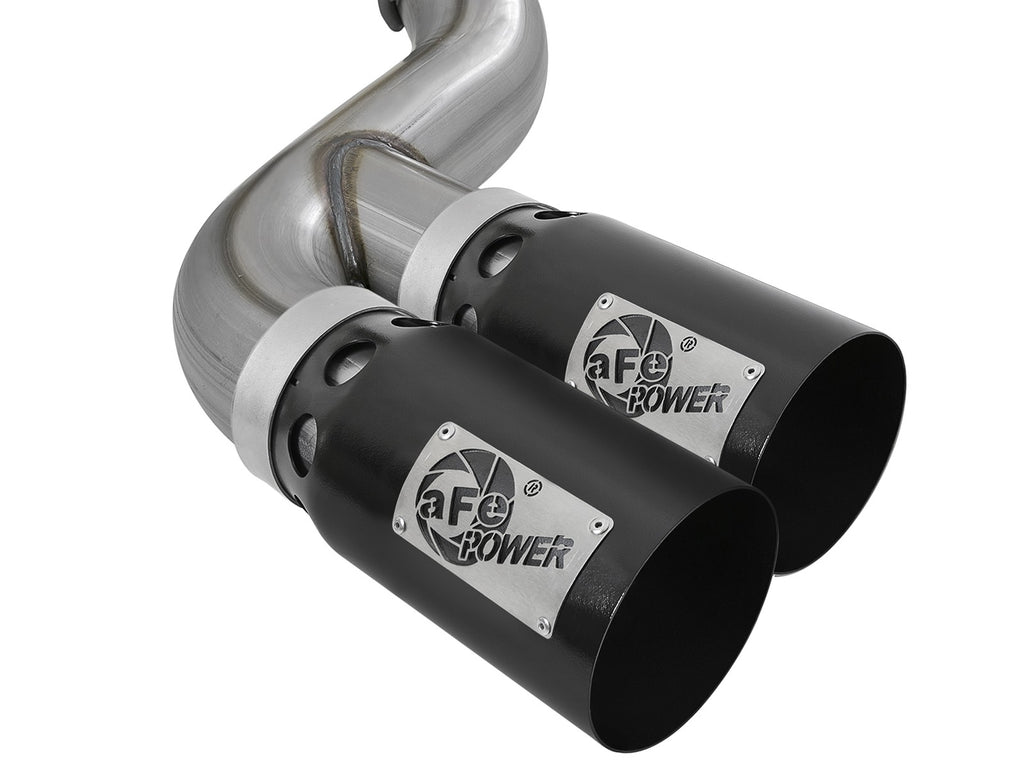

Dual 5 Inch Diameter Black Intercooled Tips: Finishing off the exhaust are dual 5 Inch straight cut, black stainless steel tips with intercooling vents that reduce Egt's at the tailpipe and are badged with a laser-cut aFe Power plates riveted on each tip.

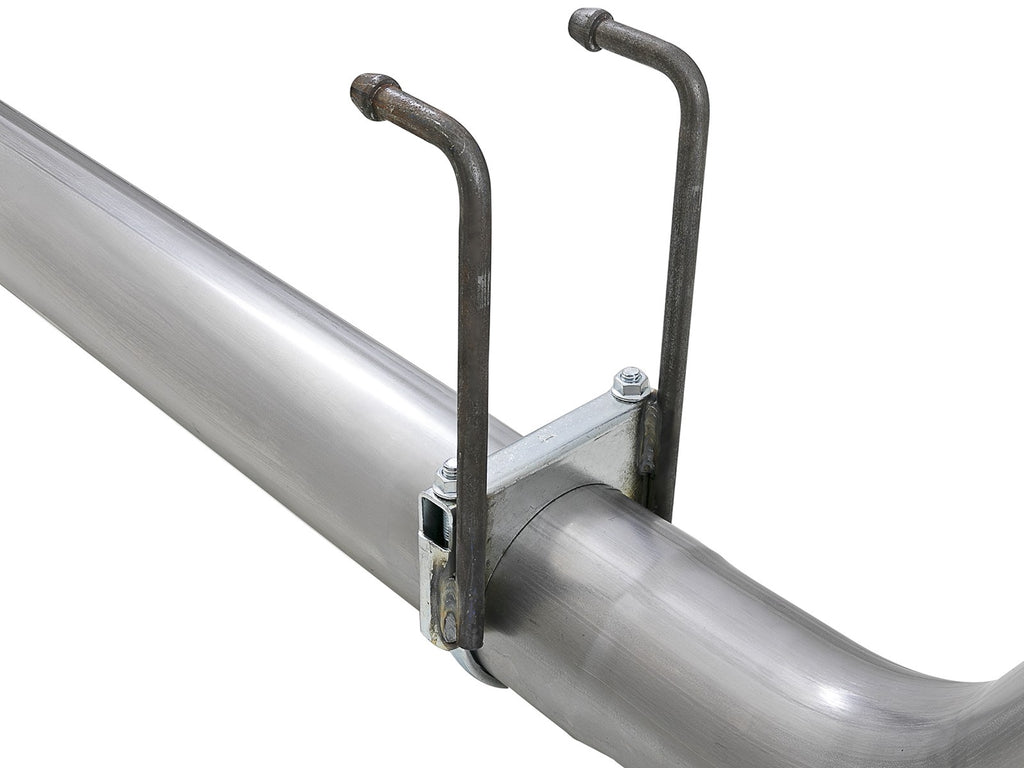

OE Fit: Oe-style bayonet hangers are used to maintain a stable pipe location under any driving conditions. The bayonet tip holds the hanger bushing in place for an Oe-style fit that does not change with time.
All systems use factory mounting locations providing a hassle-free installation.

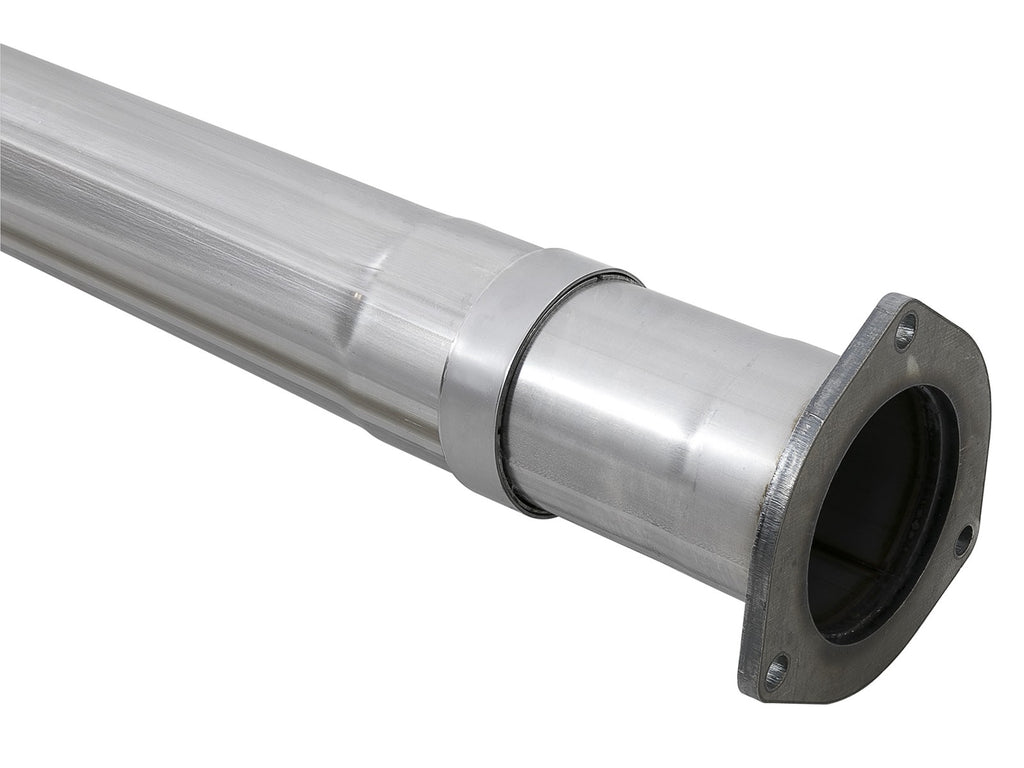

Leak-Free Seal: High quality band clamp and hardware are included for a hassle-free installation and a complete 360 degree sealing surface.
Wheelbases: Standard Cab / Long Bed, 8ft bed, 141.6 Inch wheelbase, Extended Cab / Short Bed, 6.75ft bed, 148 Inch wheelbase, Crew Cab / Short Bed, 6.75ft bed, 160 Inch wheelbase, Extended Cab / Long Bed, 8ft bed, 164.2 Inch wheelbase, Crew Cab / Long Bed, 8ft bed, 176 Inch wheelbase
Features and Benefits:
- Mig Welded
- Factory Mounting Locations
- High Quality Band Clamps
Details:
- Color: Black
- Emission Code: 4
- Exhaust Tip Cut: Straight
- Exhaust Tip Edge: Non-rolled edge, single-wall
- Exhaust Tip Included: Yes
- Exhaust Tip Outlet Size: 5 Inch
- Exhaust Tip Quantity: Dual
- Exhaust Type: DPF-Back
- Exit Location: Passenger side
- Fuel Type: Diesel
- Includes Muffler: No
- Liter: 6.7 Liter
- Muffler Included: No
- Series: Rebel Xd
- Sound Level: Moderate
- System Finish: Natural
- System Material: 409 Stainless Steel
- Tip Cut: Straight
- Tip Design: Intercooled
- Tip Edge Style: Non-rolled edge, single-wall
- Tip Finish: Black Powdercoated
- Tip Included: Yes
- Tip Material: 409 stainless steel
- Tip Outlet Size: 5 Inch
- Tubing Diameter: 4 Inch
- Warranty: 2 Year
Applications:
- Ford Diesel Trucks 17-26 V8-6.7L (td)
