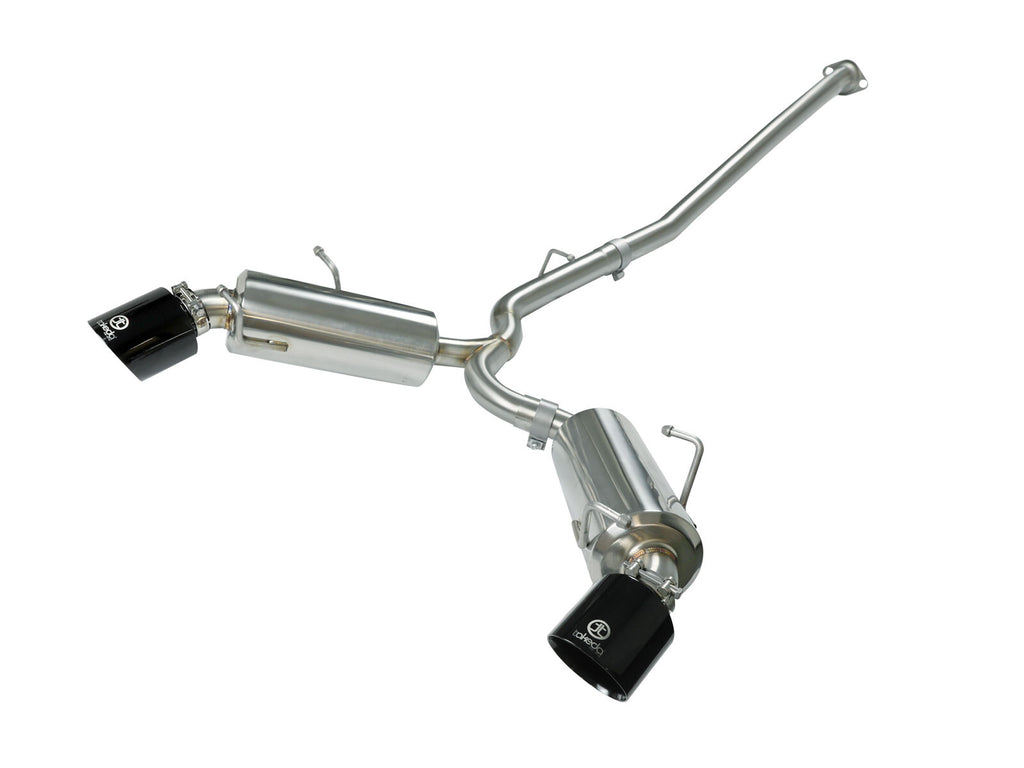

aFe is proud to introduce the Takeda Dual Cat-Back Exhaust System. This exhaust system in testing, produced a max gain of +5 horsepower and +6 ft. lbs.
of torque verified by our in house dyno. The exhaust system is constructed from 2-1/2 Inch mandrel bent 304 stainless steel and is 100 percent Tig-welded. This system was designed and engineered by tuning the perfect tube lengths, ultimately maximizing performance across the power band while maintaining a great tone.
To finish off this exhaust are two 4.75 Inch oval double wall black stainless steel tips. This exhaust design uses all factory hanger locations for a hassle free installation. No modifications necessary.
Flow and Performance:
This Takeda exhaust system is constructed of 2-1/2 Inch mandrel bent 304 stainless steel tubing for maximum flow. Smooth transition bends allow for low turbulence, increasing horsepower, torque and improving throttle response.
Simple Installation:
This systems utilizes factory mounting locations providing stability and hassle-free installation.
Leak-Free Seal:
High quality band clamps are used for a complete 360 degree sealing surface.
Aggressive Sound:
Dual free-flowing mufflers are used to absorb high pitch tones producing a powerful sound.
Features and Benefits:
- In house testing produced a max gain of +5 horsepower and +6 ft. lbs. of torque verified by our in house dyno

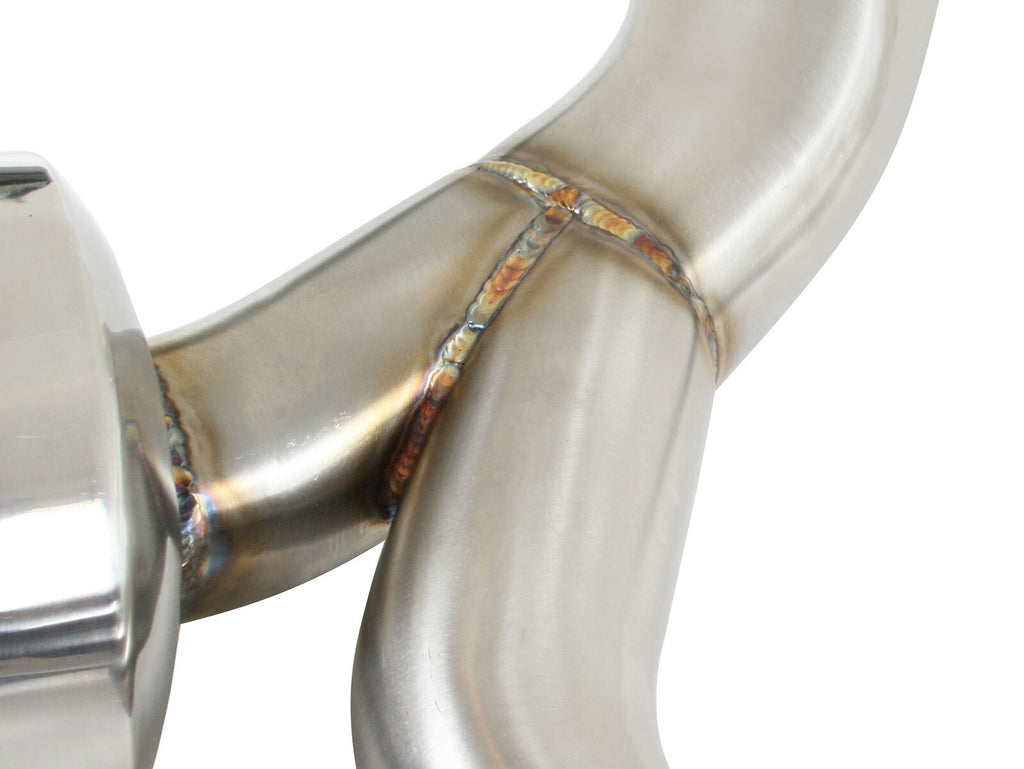

- Constructed from 2-1/2 Inch 100 percent Tig-welded mandrel-bent, brushed finish, 304 stainless steel tubing
- Incorporates dual high-flow, polished 304 SS mufflers
- Utilizes a Oe-style flange for a leak-free seal

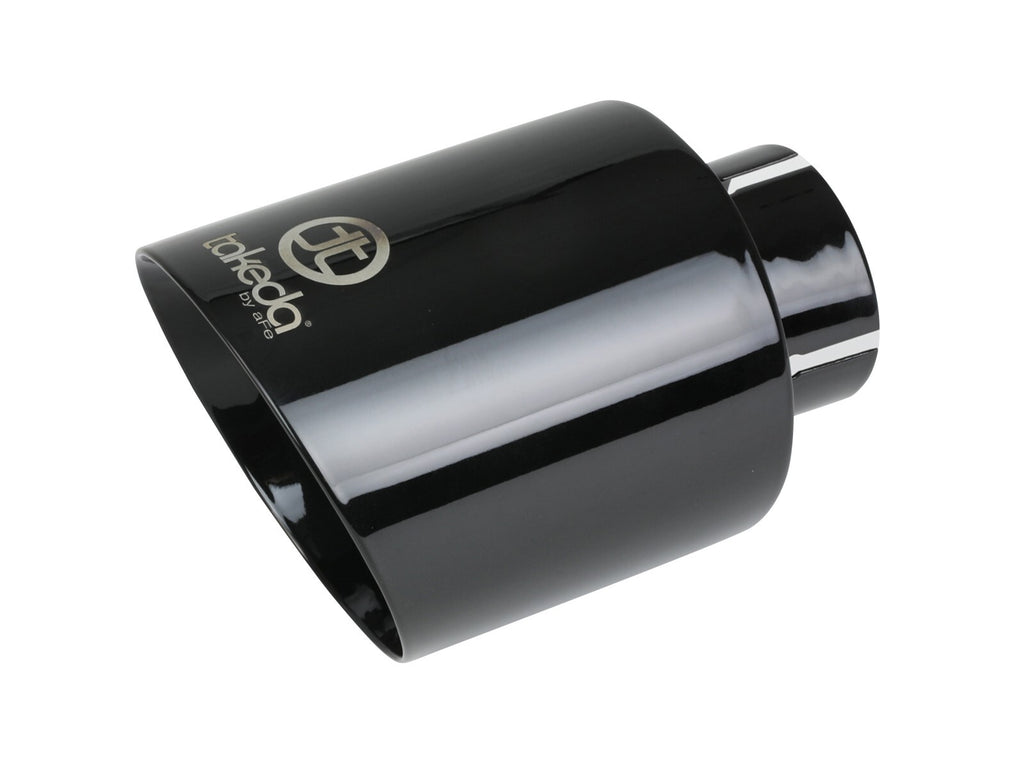

- Includes dual, Takeda laser-etched, double wall, angle-cut 304 stainless steel black tips
- This exhaust is a direct bolt-on system which requires no cutting or drilling and includes all necessary hardware for a hassle-free installation
Details:
- Color: Black
- Emission Code: 4
- Exhaust Tip Cut: Slant
- Exhaust Tip Edge: Rolled edge
- Exhaust Tip Included: Yes
- Exhaust Tip Outlet Size: 4.5 Inch
- Exhaust Tip Quantity: Dual
- Exhaust Type: Cat-Back
- Exit Position: Split Rear
- Exit Style: Straight
- Fuel Type: Gas
- Horse Power Increase: 5 Horsepower
- Includes Muffler: Yes
- Liter: 2.0 Liter
- Muffler Finish: Polished
- Muffler Included: Yes
- Muffler Material: 304 Stainless Steel
- Muffler Quantity: Two
- Series: Takeda
- System Finish: Brushed
- System Material: 304 Stainless Steel
- Tip Cut: Slant
- Tip Edge Style: Rolled edge
- Tip Finish: Black Powdercoated
- Tip Included: Yes
- Tip Material: 304 stainless steel
- Tip Outlet Size: 4.5 Inch
- Torque Increase: 6 Pounds Per Foot
- Tubing Diameter: 2.5 Inch
- Warranty: 2 Year
Applications:
- Toyota GR86/Fr-S/Brz 13-26 H4-2.0L/2.4L
