Performance Gains: This system produced gains of up to +11 HP and +10 lbs. x Ft. Tq., as measured on our in-house dyno.

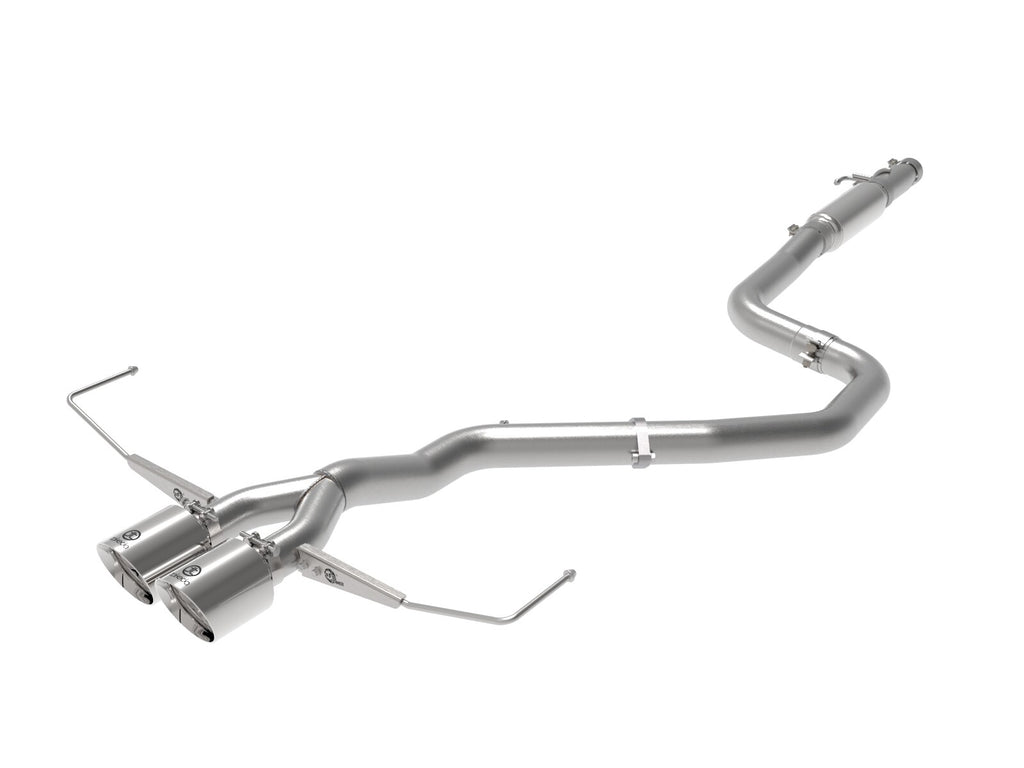

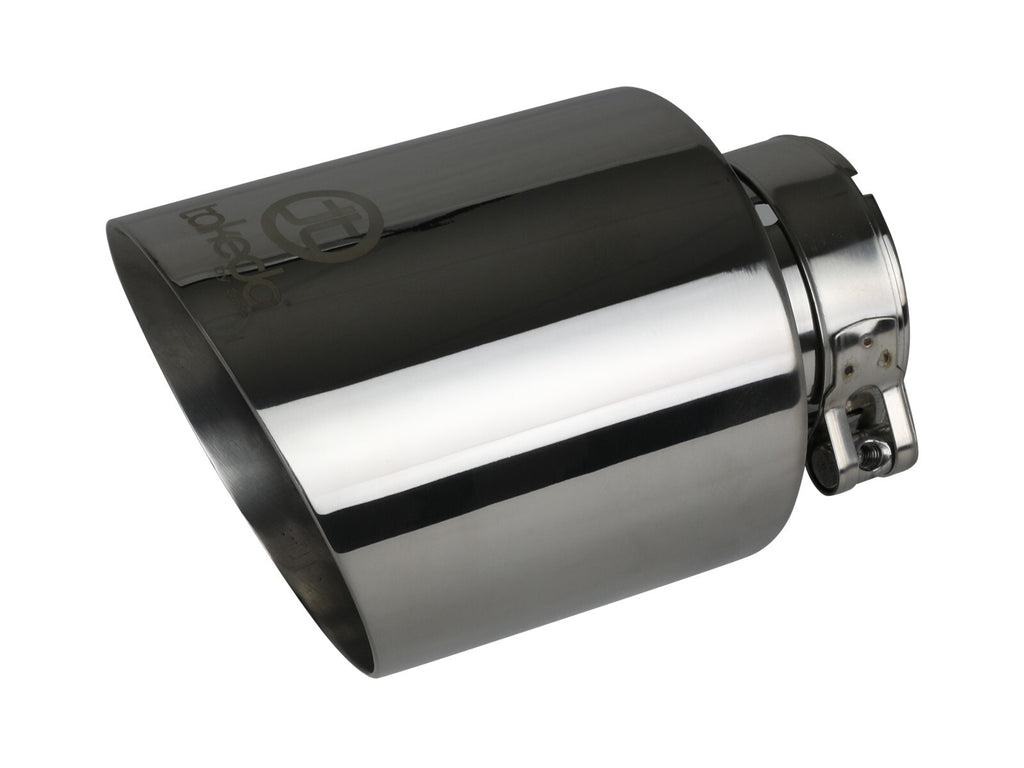

3 Inch - 2-1/2 Inch 304 Stainless Steel Construction: This cat-back exhaust system is constructed of 3 Inch - 2-1/2 Inch mandrel-bent 304 stainless steel tubing for maximum strength and durability. Dual 4-1/2 Inch Diameter Polished Exhaust Tips: Finishing off this exhaust system are dual 4-1/2 Inch diameter polished 304 stainless steel clamp-on exhaust tips. The tips feature a laser etched Takeda logo for a unique style.

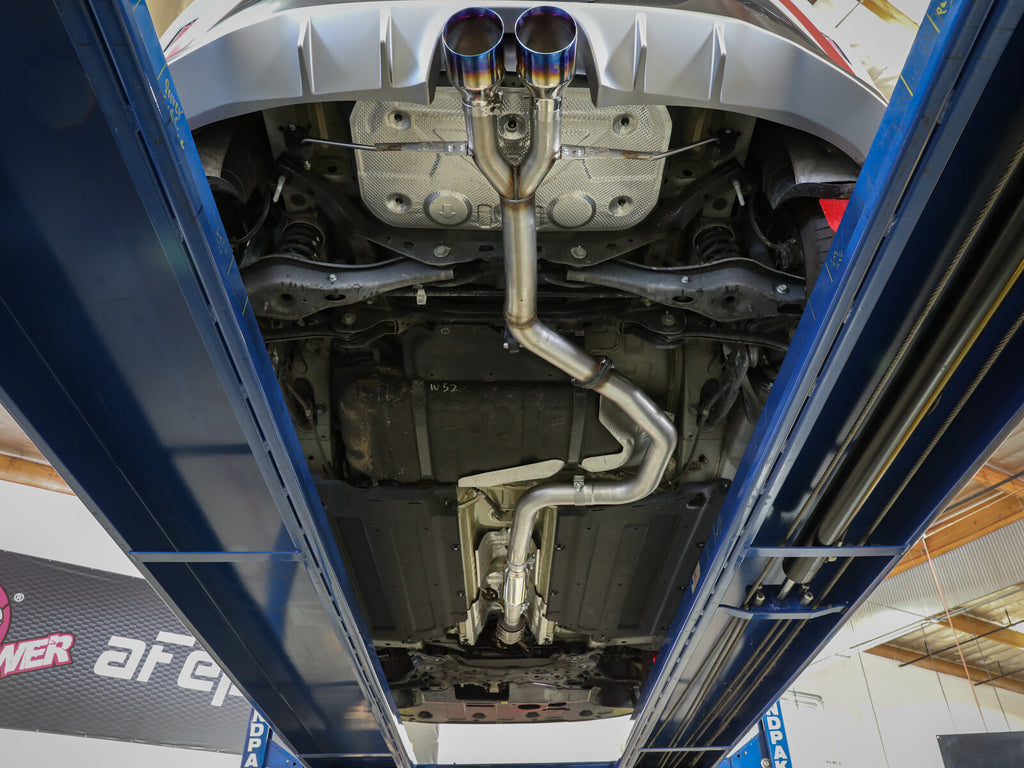

Powerful Sound: This system produces a powerful sound unleashing all available horsepower and torque. Installation: Some cutting may be required, see instruction sheet for further information. Utilizing factory style flanges and hangers this system mounts directly to factory mounting locations for a hassle-free installation.
Integrated Mitered Merge Collector: A mitered merge collector is used to decrease turbulence and increase exhaust velocity resulting in increased horsepower, torque and improved throttle response. Computer-Aided Design: Utilizing state-of-the-art computer-aided design technology, this exhaust system is designed for custom, high tolerance factory fitment. Mig-Welded: 100 percent Mig-Welded for race-proven strength and durability.

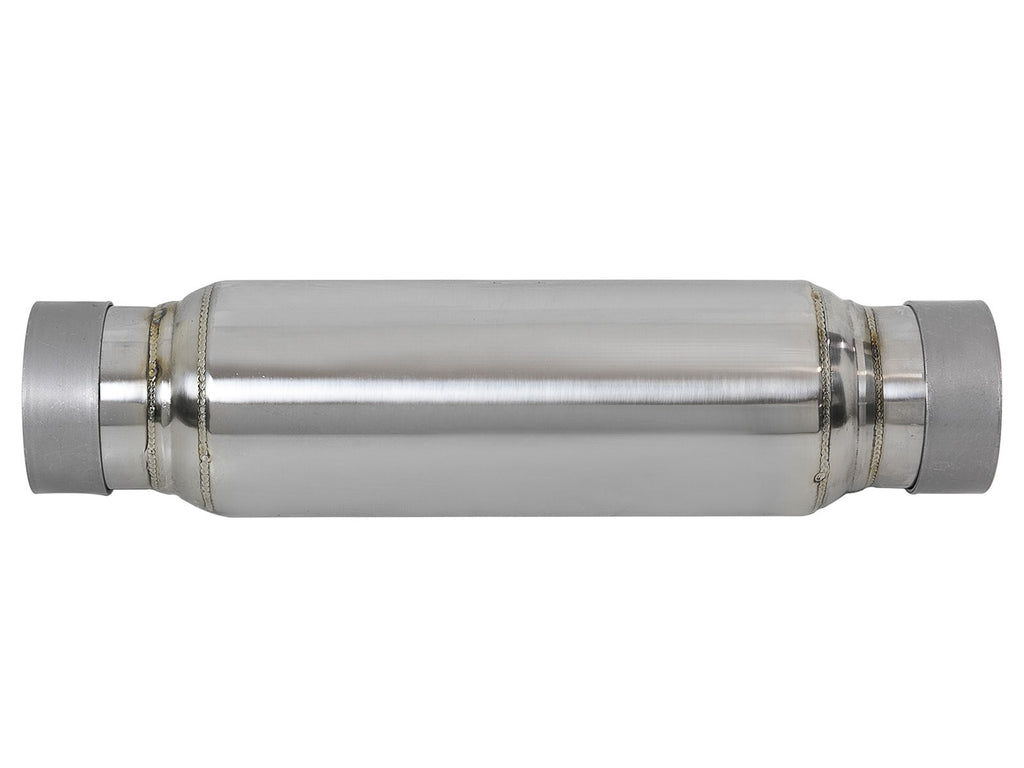

Resonator: This system features a 4 Inch x 16 Inch 304 stainless steel resonator to reduce drone. An optional resonator delete pipe is available (Pn 49-36622). Emissions Disclaimer: This product does not require a Carb Eo#.
aFe Power exhaust systems are engineered and manufactured in our Corona, California facility.
Features and Benefits:
- Constructed from 3 Inch - 2-1/2 Inch Mandrel-Bent 304 Stainless Steel Tubing
- Dual 4-1/2 Inch Diameter Polished 304 Stainless Steel Clamp-On Exhaust Tips
- Utilizes Factory Style Flanges and Hangers for a Secure Fit
- 100 percent Mig-Welded for Strength and Durability

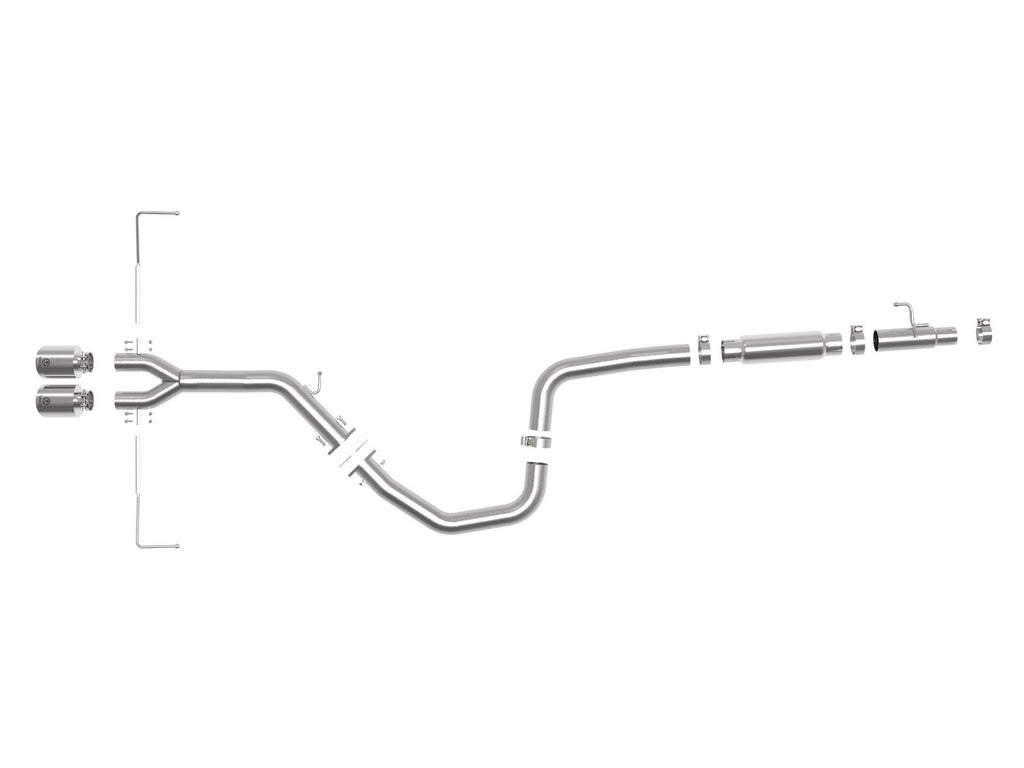

- All Necessary Hardware is Included for a Hassle-Free Installation
Details:
- Color: Polished
- Emission Code: 4
- Exhaust Tip Cut: Slant
- Exhaust Tip Included: Yes
- Exhaust Tip Outlet Size: 4.5 Inch
- Exhaust Tip Quantity: Dual
- Exhaust Type: Cat-Back
- Exit Location: Rear
- Fuel Type: Gas
- Horse Power Increase: 11
- Includes Muffler: No
- Inlet Quantity: One
- Intermediate Pipe Diameter (in): 3 Inch
- Liter: 1.6 Liter
- Muffler Included: No
- Series: Takeda
- System Finish: Natural
- System Material: 304 Stainless Steel
- System Style: Cat-back
- Tailpipe Diameter (in): 2.5 Inch
- Tip Cut: Slant
- Tip Finish: Polished
- Tip Included: Yes
- Tip Material: 304 stainless steel
- Tip Outlet Size: 4.5 Inch
- Tip Shape: Round
- Torque Increase: 10 ft-lbs
- Warranty: 2 Year
Applications:
- Hyundai Veloster 19-21 L4-1.6L (t)
