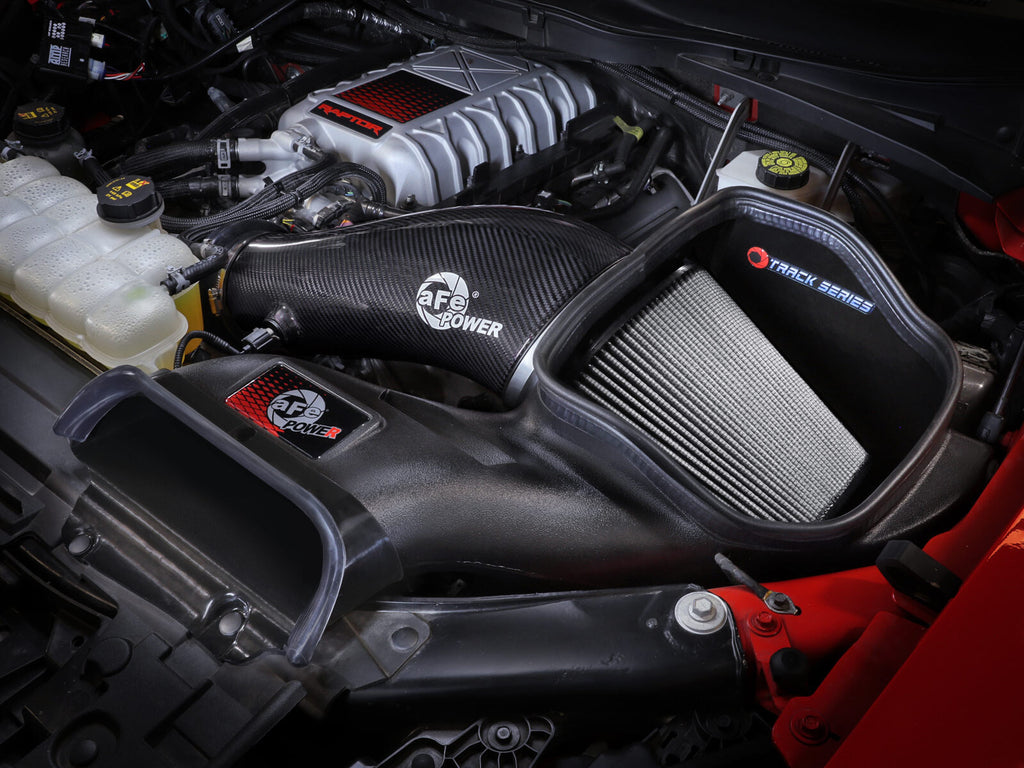

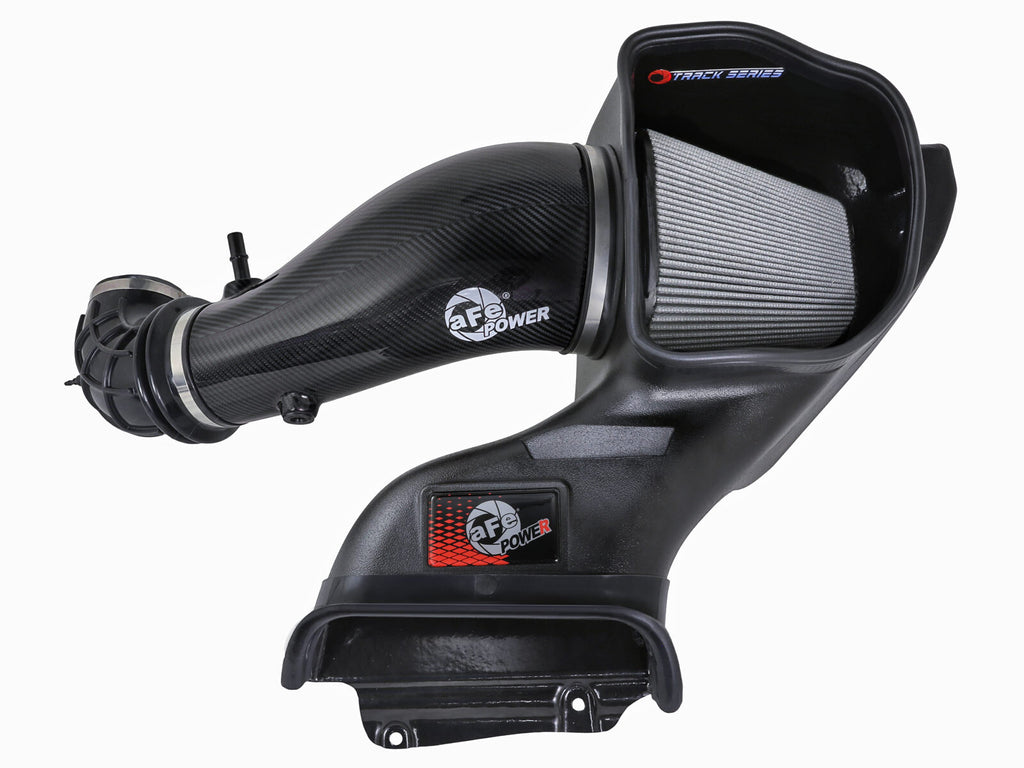

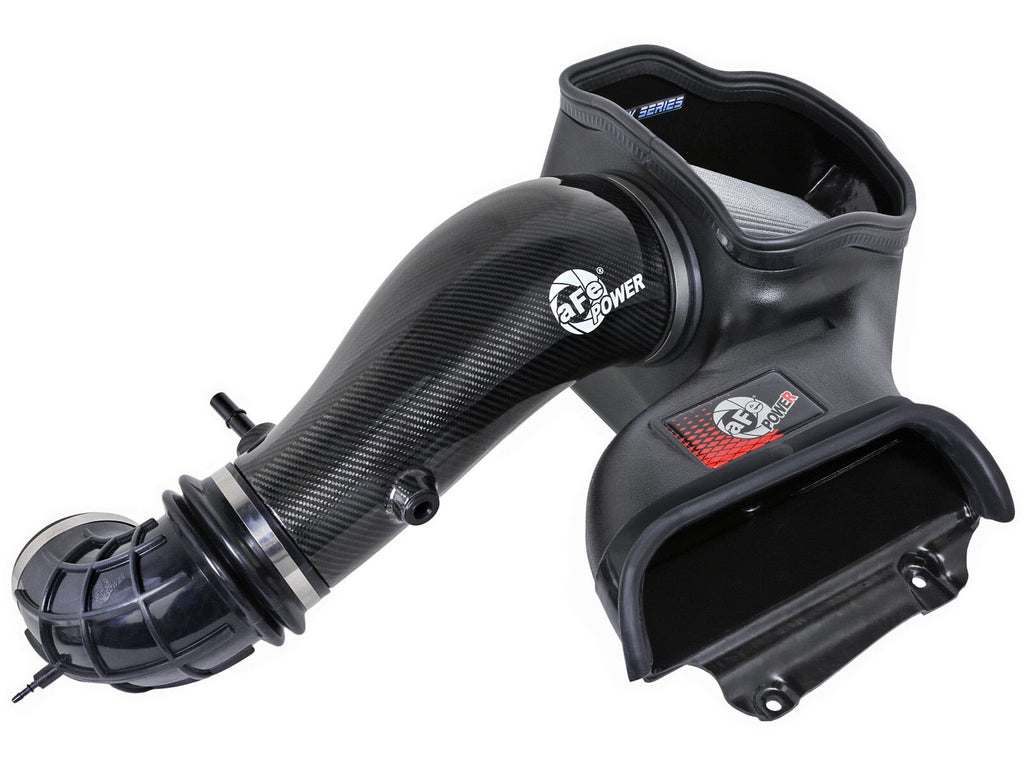

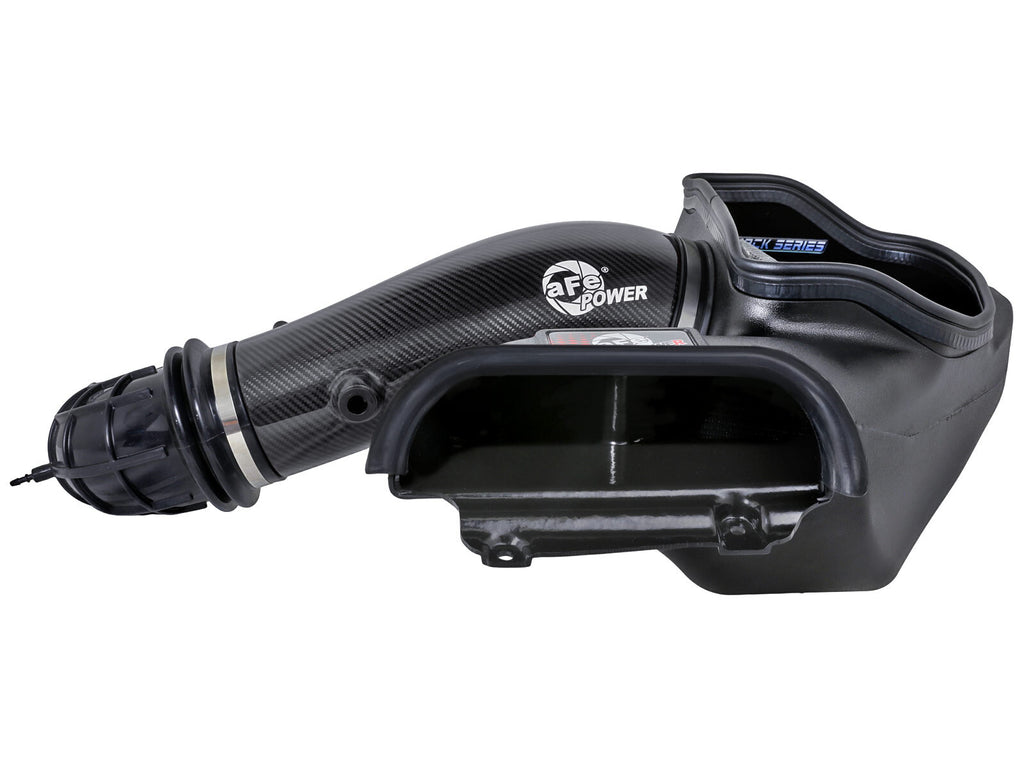

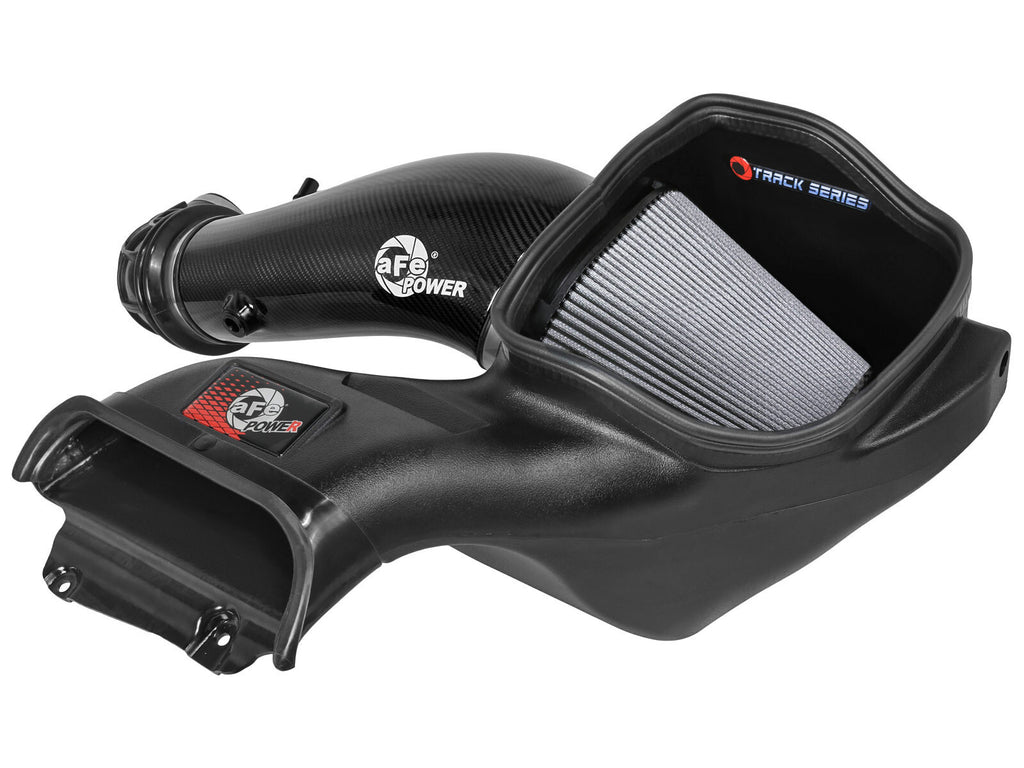

aFe Power Track Series Intake Systems, the pinnacle of innovation in open-element intakes. Designed using cutting-edge tech and crafted with premium materials, they undergo rigorous testing to ensure peak performance. Showcasing a one-piece housing that shields from elements and heat, seamlessly fitting into the engine bay.
The highlight of the Track Series is its carbon fiber intake tube, meticulously Cad-designed and refined through dyno-testing. The result is a visually striking, lightweight system that delivers exceptional performance and a captivating induction sound. This 9 tall 360-degree radial flow air filter features our oil-free Pro Dry S media with three layers of synthetic media for maximum convenience.

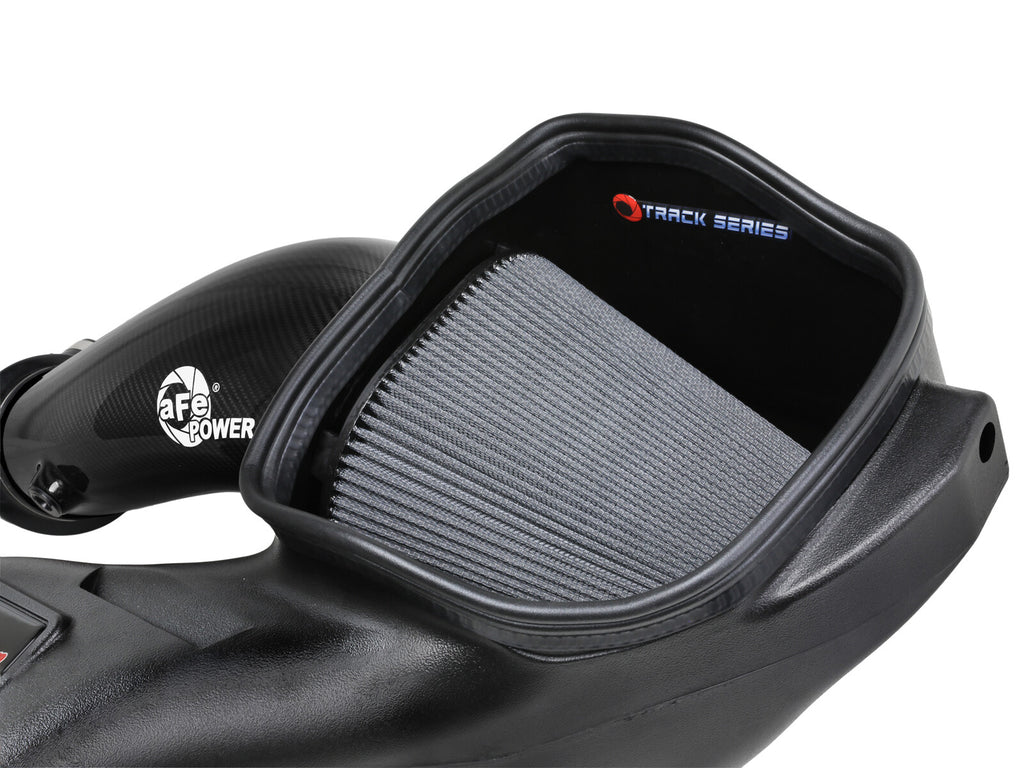

Its progressive layering provides great filtration efficiency and dust holding capacity, while not requiring the use of oils. This media is best suited for street use. This Track Series air filter was specially designed for the Raptor R and features a carbon fiber top.
Lightweight twill weave carbon fiber tube directs the filtered air from the massive air filter to the engine. It is computer designed and dyno tested to increase air flow while reducing weight and enhancing the visual appearance of the engine bay. The tube is manufactured out of 100 percent carbon fiber material (No fiberglass).
The included massive air filter is surrounded by an open-element Xlpe (cross-linked polyethylene) polymer housing that minimizes warm engine air for maximum performance. Its open design allows for easy viewing of the air filter and delivers an aggressive Air Intake sound. It utilizes the vehicle's factory air inlet.
The built-in air intake scoop captures cold air directly from the top of the radiator support thanks to its huge opening. Its innovative design makes for a hassle-free, direct bolt-on installation process that requires no cutting or drilling.
Features and Benefits:
- Dyno-tuned lightweight 100 percent carbon fiber tube
- Open-Element Design Showcases the Air Filter and Delivers an Aggressive Air Intake Sound
- Housing with built-in air intake scoop to capture cold air directly from the top of radiator support
- Washable and Reusable Pro Dry S Air Filter for Maximum Convenience with Carbon Fiber Top
- Premium Stainless-Steel Clamps and Silicone Couplings Provide a Secure Seal
- Utilizes Factory Mounting Locations for an Easy and Secure Installation
Details:
- Air Box Type: Open
- Air Flow Gain: 22 Percent
- Air Flow Rate: 615 Cubic Feet per Minute
- Air Intake Tube Color: Carbon Fiber
- Air Intake Tube Material: Carbon Fiber
- Color: Carbon Fiber
- Coupler Color: Black
- Coupler Included: Yes
- Coupler Material: Silicone
- ECU Tuning Required: No
- Emission Code: 1
- Filter Color: Gray
- Filter Included: Yes
- Filter Material: Non-woven Synthetic
- Fuel Type: Gas
- Grade Type: Performance
- Heat Shield Color: Black
- Heat Shield Included: No
- Heat Shield Material: PE (Polyethylene)
- Heat Shield Sheen Level: Satin
- Heat Shield Surface Type: Textured
- Horse Power Increase: 14 Horsepower
- Hose Clamp Material: Stainless Steel
- Hose Clamp Type: Worm Gear
- Housing Color: Black
- Housing Material: Cross-linked Polyethylene
- Liter: 5.2 Liter
- Mass Air Flow Sensor Mounting Provision: Yes
- Modifications Required: No
- Mounting Hardware Included: Yes
- Oiled or Dry Media: Dry
- Series: Track Series
- System Type: Open Element Intake
- Torque Increase: 14 ft-lbs
- Tuning Required: No
- Warranty: 2 Year
Applications:
- Ford F-150 Raptor R 23-26 V8-5.2L (sc)
