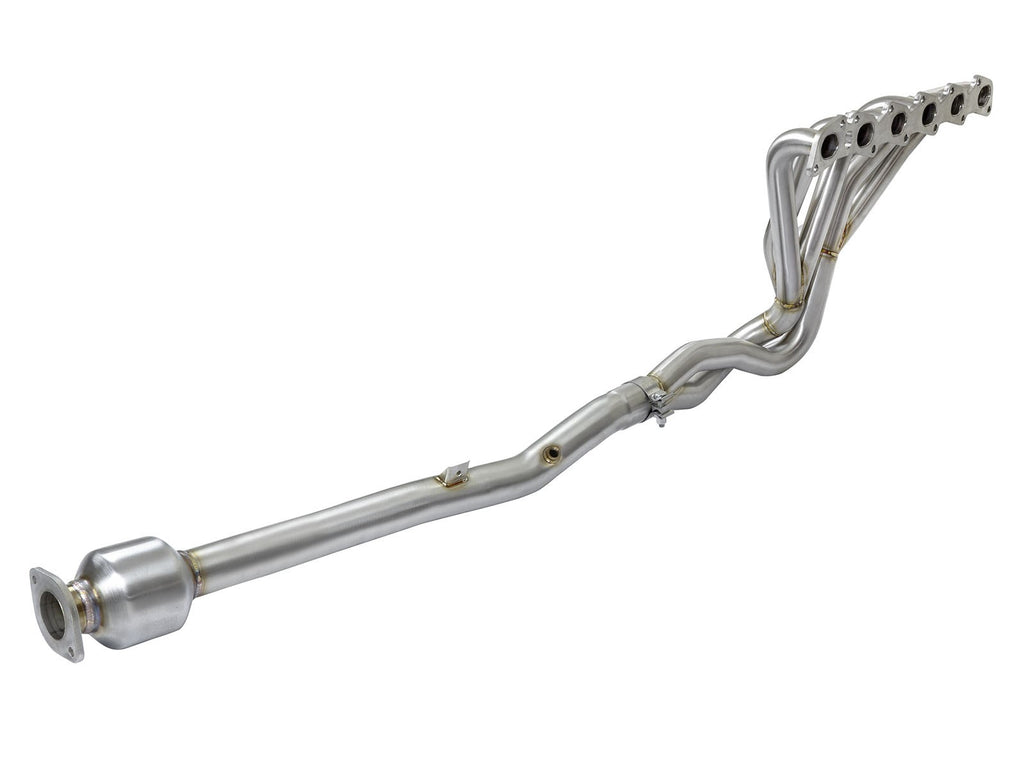

Tri-Y Design: Paired opposite firing cylinders with equal, specifically tuned primary lengths maximizes scavenging and increases torque throughout the power band. High-Flow Cat: This system utilizes a high flow catalytic converter for maximum flow. 304 Stainless Steel Laser Cut Header Flanges: High quality laser cut 304 stainless steel header flanges provides superior sealing at the head surface.
304 Stainless Steel Tubing: High grade stainless tubing with a uniform brushed finish provides a beautiful look and high resistance to corrosion. Tig Welded: 100 percent Tig welded by certified craftsmen for race proven strength and durability. Tig welding provides the strongest welds reducing stress cracks.
Factory Mounting Locations: 2.5 InchInlet/Outlet Connection Pipe mount directly to OE mounting locations. Mandrel Bent Tubing: This system is constructed of mandrel bent, stainless steel brushed tubing for maximum performance, corrosion resistance and strength eliminating cracking. Emissions Disclaimer: This product does not require a Carb Eo# (Vehicle does not exist in U.S.).
aFe Twisted Steel Headers are engineered and manufactured in our Corona, California manufacturing facility.
Features and Benefits:
- Fits 4-Door with Automatic & Manual transmissions
- 6-2-1 Tri-Y Designed Headers w/1-3/4 Inch Primary Tubing, 2-1/8 Inch Secondary Tubes, & a 2-1/2 Inch Collector
- 3/8 Inch Thick, Oe-Style, 304 Stainless Steel Head Flanges
- Optimized Tube Lengths & High-Flow Cat Improve Flow and Performance
- 100 percent Hand Tig Welded for Optimal Strength and Durability
- Retains Factory O2 Sensor Locations
- 2-1/2 Inch Inlet/Outlet Connection Pipe Mounts Directly to OE Mounting Locations
Details:
- Application: Automotive
- Emission Code: 4
- Engine Make/Size: Ford 4.6L
- Horsepower Increase: 24
- Material: Steel
- Port Shape: Round
- Series: Twisted Steel
- Torque Increase: 27 ft-lbs
- Tube Diameter: 1.75 Inch
- Tube Direction: Down Swept
- Warranty: 2 Year
Applications:
- Nissan Patrol (Y61) 01-16 L6-4.8L
