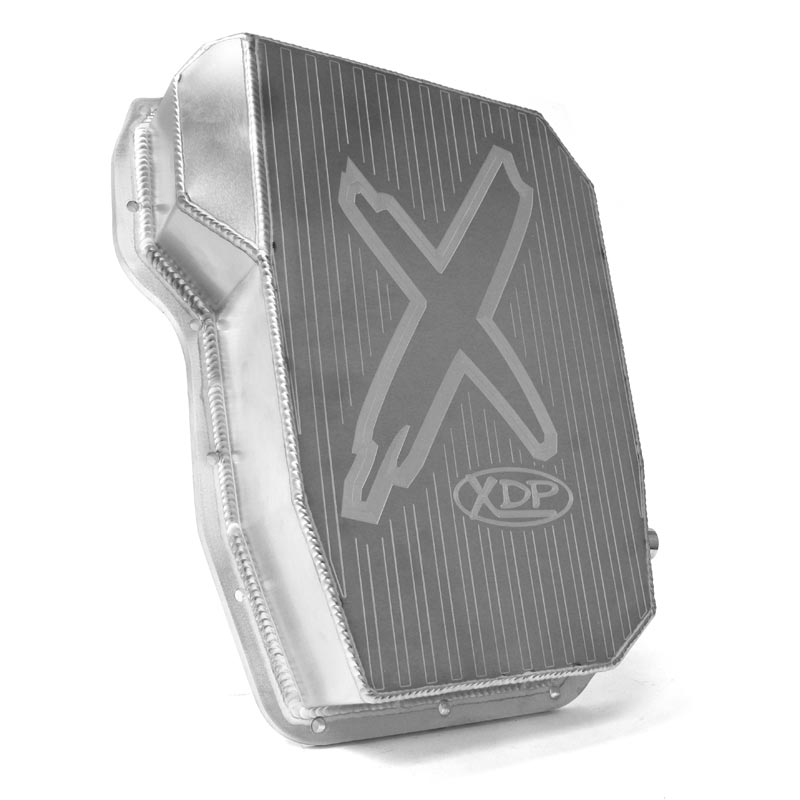

Xtra Deep Aluminum Transmission Pan (68RFE) XD452 XDP

  • Sale
  • Regular price $389.95
Free shipping on orders over $150.


Add 2 quarts of extra fluid capacity and a custom look to the 68RFE transmission in your Cummins powered Ram with the XDP X-TRA Deep Aluminum Transmission Pan (68RFE) XD452. The XDP X-TRA Deep Transmission Pan is built with an aluminum sheet metal construction to give you a race-inspired look that is sleek, lightweight, and durable.

Each pan features a fully-welded construction and a 3/8 inch thick mounting flange for added strength and resistance to warping. The CNC engraved bottom provides you with enhanced looks and styling while the direct-fit design allows this pan to easily install using any OE-style gasket.

As an upgrade over the factory pan, the X-TRA Deep Pan is equipped with a drain plug and an 1/8 inch NPT port access to install a transmission temperature sender. This pan comes ready to install with new stainless steel hardware and is backed by the XDP 1-year unlimited mileage warranty.

Features:

  • 1/8 inch NPT Temperature Port
  • Deep Sump For Added Capacity
  • Fabricated Aluminum Construction
  • 2 Quarts Added Capacity Over Stock
  • Includes Stainless Steel Mounting Hardware

Application Notes:

  • Does not include a gasket or filter.
  • Fits 2007.5-2018 Cummins 6.7L equipped with 68RFE Transmission
  • The XDP 68RFE Billet Filter Clamp XD478 is required on applications running a stock valve body with a deep transmission pan.
